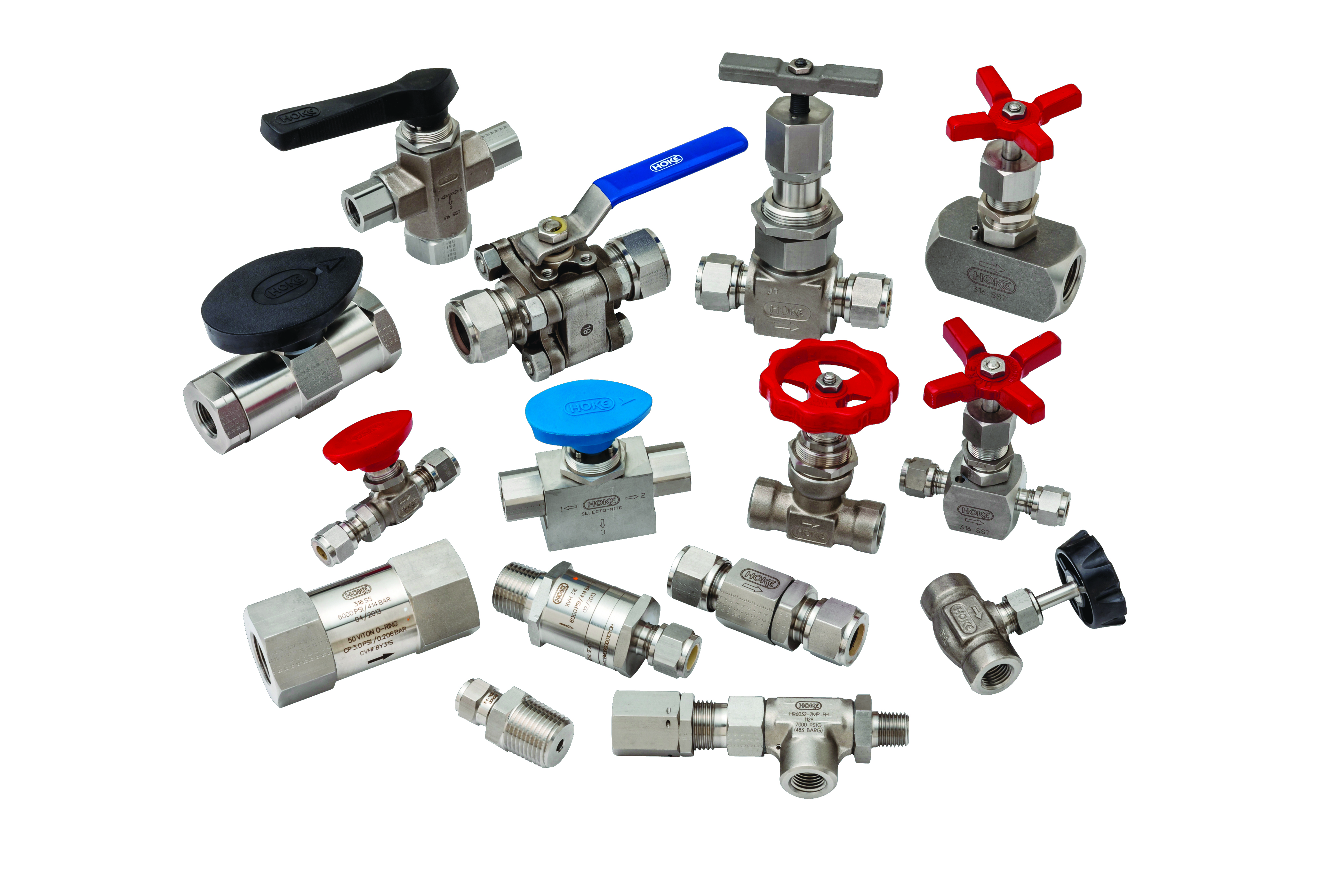

HOKE

Since 1855 Crane has been the world’s leading innovator and pioneer of practical flow control solutions addressing and exceeding our customers’ needs to enable them to operate better, faster and safer. Crane I&S, HOKE offers a comprehensive portfolio of instrumentation and sampling products and solutions.

  • Gyrolok Tube Fittings
  • Instrumentation Valves
  • Actuators
  • Flow and Fluid control components
  • Instrumentation Manifolds
  • HCQ Series Quick Couplings
  • Sampling Cylinders
  • Tools

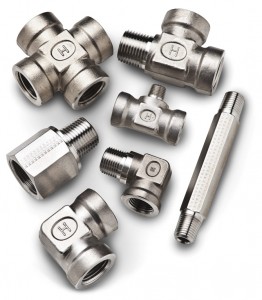

HOKE® Precision Instrument Pipe Fittings are manufactured with reduced tolerance NPT tapered threads in a wide variety of configurations to provide broad application capabilities.

Ratings and specifications are as follows:

Threads utilised on HOKE® Precision Instrument Pipe Fittings are National Pipe Taper (NPT) which exceed the requirements of ANSI B1.20.1.

Pressure Ratings for temperatures up to 38°C (100°F) are identified for each individual pipe fitting in the dimensional data charts.

Temperatures noted below apply to basic fitting capabilities. In all cases consideration must also be given to the type of thread sealant used. For example, PTFE tape has a maximum temperature rating of 232°C (450°F).

316 Stainless Steel:  -198 to 648°C (-325 to 1200°F) Note: Prolonged exposure to temperature over 426°C (800°F) is not recommended.
Brass:  -198 to 204°C (-325 to 400°F)

Materials: HOKE® Precision Instrument Pipe Fittings are available as standard in Brass and 316 Stainless Steel. HOKE® Pipe Fittings can also be supplied in other materials including Monel®, Hastelloy® C276, Inconel®, Incoloy®, Duplex, Super Duplex and Titanium, as well and in special shapes. Specifications for standard materials are:

316 Stainless Steel Forgings: ASTM A-182
316 Stainless Steel Bar Stock: ASTM A-479
Brass Forgings, Alloy 377: QQ-B-626
Brass Bar Stock, Alloy 353: ASTM B-453
or Alloy 360: QQ-B-626

Heat Traceability: HOKE® Precision Instrument Pipe Fittings are heat code traceable in all alloys except brass with certified material test reports (CMTR’s) available on request.

Monel, Hastelloy, Inconel and Incoloy are registered trademarks.



PDF PRODUCT LITERATURE



HOKE NPT Full Bore Ball Valves   HOKE Precision Pipe Fittings
HOKE 7G Ball Valves   HOKE Ball Valves
HOKE Fluid Control Components   HOKE Industrial Ball Valves
HOKE Metering Valves   HOKE Needle Valves
HOKE Prochem Valves Overview

Sort by
Display per page
Product
6FLP-316

10NPT 90D FEMALE ELBOW HOKE 316

FLP Female Elbow (female NPT both ends)
- +
6MLP-316

10NPT 90D MALE ELBOW HOKE 316

MLP Male Elbow (male NPT both ends)
- +
6SLP-316

10NPT 90D STREET ELBOW HOKE 316

SLP Street Elbow (female to male NPT)
- +
6CSP-316

10NPT CROSS FEMALE HOKE 316

CSP Cross
- +
6CPP-316

10NPT HEX CAP HOKE 316

CPP Cap (female NPT)
- +
6NP-316

10NPT HEX NIPPLE HOKE 316

NP Hex Nipple (male NPT both ends)
- +
6PP-316

10NPT HEX PLUG HOKE 316

PP Plug (male NPT)
- +
6MTP-316

10NPT MALE TEE HOKE 316

MTP Male Tee (male NPT all ports)
- +
6STP-316

10NPT STREET TEE HOKE 316

STP Street Tee (female by male run/female branch)
- +
6LNP-316/400

10NPT X 100MM LG LONG HEX NIPPLE HOKE 316

LNP Hex Long Nipple (male NPT both ends)
- +
6FT/BM6-316

10NPT X 10NPT MALE BRANCH TEE HOKE 316

FTBM Male Branch Tee (female run/male branch)
- +
6RAP2-316

10NPT X 6NPT REDUCING ADAPTER HOKE 316

RAP Reducing Adapter (female NPT to reduced male NPT)
- +
6RAP4-316

10NPT X 8NPT REDUCING ADAPTER HOKE 316

RAP Reducing Adapter (female NPT to reduced male NPT)
- +
6RBP4-316

10NPT X 8NPT REDUCING BUSH HOKE 316

RBP Reducing Bushing (male NPT to reduced female NPT)
- +
6RCGP4-316

10NPT X 8NPT REDUCING COUPLING HOKE 316

RCGP Reducing Coupling (female NPT to reduced female NPT)
- +
6RNP4-316

10NPT X 8NPT REDUCING NIPPLE HOKE 316

RNP Hex Reducing Nipple (male NPT to reduced male NPT)
- +
8FLP-316

15NPT 90D FEMALE ELBOW HOKE 316

FLP Female Elbow (female NPT both ends)
- +
8MLP-316

15NPT 90D MALE ELBOW HOKE 316

MLP Male Elbow (male NPT both ends)
- +
8SLP-316

15NPT 90D STREET ELBOW HOKE 316

SLP Street Elbow (female to male NPT)
- +
8AP-316

15NPT ADAPTER M/F HOKE 316

AP Adapter (female NPT same size male NPT)
- +
8CSP-316

15NPT CROSS FEMALE HOKE 316

CSP Cross
- +
8FTP-316

15NPT FEMALE TEE HOKE 316

FTP Female Tee (female NPT all ports)
- +
8CPP-316

15NPT HEX CAP HOKE 316

CPP Cap (female NPT)
- +
8CGP-316

15NPT HEX COUPLING HOKE 316

CGP Hex Coupling (female NPT both ends)
- +
8NP-316

15NPT HEX NIPPLE HOKE 316

NP Hex Nipple (male NPT both ends)
- +
8MTP-316

15NPT MALE TEE HOKE 316

MTP Male Tee (male NPT all ports)
- +
8STP-316

15NPT STREET TEE HOKE 316

STP Street Tee (female by male run/female branch)
- +
8RSLP6-316

15NPT X 10NPT 90D REDUCING STREET ELBOW HOKE 316

RSLP Reducing Street Elbow (female NPT reduced male NPT)
- +
8RAP6-316

15NPT X 10NPT REDUCING ADAPTER HOKE 316

RAP Reducing Adapter (female NPT to reduced male NPT)
- +
8RBP6-316

15NPT X 10NPT REDUCING BUSH HOKE 316

RBP Reducing Bushing (male NPT to reduced female NPT)
- +
8RCGP6-316

15NPT X 10NPT REDUCING COUPLING HOKE 316

RCGP Reducing Coupling (female NPT to reduced female NPT)
- +
8RNP6-316

15NPT X 10NPT REDUCING NIPPLE HOKE 316

RNP Hex Reducing Nipple (male NPT to reduced male NPT)
- +
8FT/BM8-316

15NPT X 15NPT MALE BRANCH TEE HOKE 316

FTBM Male Branch Tee (female run/male branch)
- +
8RSLP4-316

15NPT X 8NPT 90D REDUCING STREET ELBOW HOKE 316

RSLP Reducing Street Elbow (female NPT reduced male NPT)
- +
8RAP4-316

15NPT X 8NPT REDUCING ADAPTER HOKE 316

RAP Reducing Adapter (female NPT to reduced male NPT)
- +
8RBP4-316

15NPT X 8NPT REDUCING BUSH HOKE 316

RBP Reducing Bushing (male NPT to reduced female NPT)
- +
8RCGP4-316

15NPT X 8NPT REDUCING COUPLING HOKE 316

RCGP Reducing Coupling (female NPT to reduced female NPT)
- +
8RNP4-316

15NPT X 8NPT REDUCING NIPPLE HOKE 316

RNP Hex Reducing Nipple (male NPT to reduced male NPT)
- +
12FLP-316

20NPT 90D FEMALE ELBOW HOKE 316

FLP Female Elbow (female NPT both ends)
- +
12MLP-316

20NPT 90D MALE ELBOW HOKE 316

MLP Male Elbow (male NPT both ends)
- +
12SLP-316

20NPT 90D STREET ELBOW HOKE 316

SLP Street Elbow (female to male NPT)
- +
12AP-316

20NPT ADAPTER M/F HOKE 316

AP Adapter (female NPT same size male NPT)
- +
12FTP-316

20NPT FEMALE TEE HOKE 316

FTP Female Tee (female NPT all ports)
- +
12CPP-316

20NPT HEX CAP HOKE 316

CPP Cap (female NPT)
- +
12CGP-316

20NPT HEX COUPLING HOKE 316

CGP Hex Coupling (female NPT both ends)
- +
12NP-316

20NPT HEX NIPPLE HOKE 316

NP Hex Nipple (male NPT both ends)
- +
12PP-316

20NPT HEX PLUG HOKE 316

PP Plug (male NPT)
- +
12RAP6-316

20NPT X 10NPT REDUCING ADAPTER HOKE 316

RAP Reducing Adapter (female NPT to reduced male NPT)
- +
12RBP6-316

20NPT X 10NPT REDUCING BUSH HOKE 316

RBP Reducing Bushing (male NPT to reduced female NPT)
- +
12RCGP6-316

20NPT X 10NPT REDUCING COUPLING HOKE 316

RCGP Reducing Coupling (female NPT to reduced female NPT)
- +
12RNP6-316

20NPT X 10NPT REDUCING NIPPLE HOKE 316

RNP Hex Reducing Nipple (male NPT to reduced male NPT)
- +
12RAP8-316

20NPT X 15NPT REDUCING ADAPTER HOKE 316

RAP Reducing Adapter (female NPT to reduced male NPT)
- +
12RBP8-316

20NPT X 15NPT REDUCING BUSH HOKE 316

RBP Reducing Bushing (male NPT to reduced female NPT)
- +
12RCGP8-316

20NPT X 15NPT REDUCING COUPLING HOKE 316

RCGP Reducing Coupling (female NPT to reduced female NPT)
- +
12RNP8-316

20NPT X 15NPT REDUCING NIPPLE HOKE 316

RNP Hex Reducing Nipple (male NPT to reduced male NPT)
- +
12LNP-316/300

20NPT X 80MM LG LONG HEX NIPPLE HOKE 316

LNP Hex Long Nipple (male NPT both ends)
- +
12RAP4-316

20NPT X 8NPT REDUCING ADAPTER HOKE 316

RAP Reducing Adapter (female NPT to reduced male NPT)
- +
12RBP4-316

20NPT X 8NPT REDUCING BUSH HOKE 316

RBP Reducing Bushing (male NPT to reduced female NPT)
- +
12RCGP4-316

20NPT X 8NPT REDUCING COUPLING HOKE 316

RCGP Reducing Coupling (female NPT to reduced female NPT)
- +
16CGP-316

25NPT HEX COUPLING HOKE 316

CGP Hex Coupling (female NPT both ends)
- +
16NP-316

25NPT HEX NIPPLE HOKE 316

NP Hex Nipple (male NPT both ends)
- +
16PP-316

25NPT HEX PLUG HOKE 316

PP Plug (male NPT)
- +
16RAP8-316

25NPT X 15NPT REDUCING ADAPTER HOKE 316

RAP Reducing Adapter (female NPT to reduced male NPT)
- +
16RBP8-6MO

25NPT X 15NPT REDUCING BUSH HOKE 6MO HOKE

RBP Reducing Bushing (male NPT to reduced female NPT)
16RCGP8-316

25NPT X 15NPT REDUCING COUPLING HOKE 316

RCGP Reducing Coupling (female NPT to reduced female NPT)
- +
16RNP8-316

25NPT X 15NPT REDUCING NIPPLE HOKE 316

RNP Hex Reducing Nipple (male NPT to reduced male NPT)
- +
16RBP12-316

25NPT X 20NPT REDUCING BUSH HOKE 316

RBP Reducing Bushing (male NPT to reduced female NPT)
- +
16RCGP12-316

25NPT X 20NPT REDUCING COUPLING HOKE 316

RCGP Reducing Coupling (female NPT to reduced female NPT)
- +
16RNP12-316

25NPT X 20NPT REDUCING NIPPLE HOKE 316

RNP Hex Reducing Nipple (male NPT to reduced male NPT)
- +
16LNP-316/300

25NPT X 80MM LG LONG HEX NIPPLE HOKE 316

LNP Hex Long Nipple (male NPT both ends)
- +
2FLP-316

6NPT 90D FEMALE ELBOW HOKE 316

FLP Female Elbow (female NPT both ends)
- +
2AP-316

6NPT ADAPTER M/F HOKE 316

AP Adapter (female NPT same size male NPT)
- +
2FTP-316

6NPT FEMALE TEE HOKE 316

FTP Female Tee (female NPT all ports)
- +
2NP-6MO

6NPT HEX NIPPLE HOKE 6MO

NP Hex Nipple (male NPT both ends)
2PP-316

6NPT HEX PLUG HOKE 316

PP Plug (male NPT)
- +
2RBP1-316

6NPT X 3NPT REDUCING BUSH HOKE 316

RBP Reducing Bushing (male NPT to reduced female NPT)
- +
2FT/BM2-316

6NPT X 8NPT MALE BRANCH TEE HOKE 316

FTBM Male Branch Tee (female run/male branch)
- +
4FLP-316

8NPT 90D FEMALE ELBOW HOKE 316

FLP Female Elbow (female NPT both ends)
- +
4MLP-316

8NPT 90D MALE ELBOW HOKE 316

MLP Male Elbow (male NPT both ends)
- +
4SLP-316

8NPT 90D STREET ELBOW HOKE 316

SLP Street Elbow (female to male NPT)
- +
4AP-316

8NPT ADAPTER M/F HOKE 316

AP Adapter (female NPT same size male NPT)
- +
4CPP-316

8NPT HEX CAP HOKE 316

CPP Cap (female NPT)
- +
4CGP-316

8NPT HEX COUPLING HOKE 316

CGP Hex Coupling (female NPT both ends)
- +
4NP-316

8NPT HEX NIPPLE HOKE 316

NP Hex Nipple (male NPT both ends)
- +
4NP-6MO

8NPT HEX NIPPLE HOKE S31254

NP Hex Nipple (male NPT both ends)
4PP-316

8NPT HEX PLUG HOKE 316

PP Plug (male NPT)
- +
4PP-6MO

8NPT HEX PLUG HOKE 6MO HOKE

PP Plug (male NPT)
4MTP-316

8NPT MALE TEE HOKE 316

MTP Male Tee (male NPT all ports)
- +
4STP-316

8NPT STREET TEE HOKE 316

STP Street Tee (female by male run/female branch)
- +
4LNP-316/200

8NPT X 50MM LG LONG HEX NIPPLE HOKE 316

LNP Hex Long Nipple (male NPT both ends)
- +
4RAP2-316

8NPT X 6NPT REDUCING ADAPTER HOKE 316

RAP Reducing Adapter (female NPT to reduced male NPT)
- +
4RBP2-316

8NPT X 6NPT REDUCING BUSH HOKE 316

RBP Reducing Bushing (male NPT to reduced female NPT)
- +
4LNP-316/300

8NPT X 80MM LG LONG HEX NIPPLE HOKE 316

LNP Hex Long Nipple (male NPT both ends)
- +
4FT/BM4-316

8NPT X 8NPT MALE BRANCH TEE HOKE 316

FTBM Male Branch Tee (female run/male branch)
- +
7520F8Y-RH-AX

15NPT FEMALE 1000WOG 3-PIECE FULL BORE BALL VALVE HOKE CF8M/304 TRIM ISO MOUNT PAD

3-Piece Full Port Ball Valve, NPT Threaded Ends, 1/2" 1000PSI (69 Bar) W.O.G, Enclosed Bolt Type, ISO 5211 Direct Actuator Mounting Pad
- +
7520F6Y-RH-AX

10NPT FEMALE 1000WOG 3-PIECE FULL BORE BALL VALVE HOKE CF8M/304 TRIM ISO MOUNT PAD

3-Piece Full Port Ball Valve, NPT Threaded Ends, 3/8" 1000PSI (69 Bar) W.O.G, Enclosed Bolt Type, ISO 5211 Direct Actuator Mounting Pad
- +
7520F24Y-RH-AX

40NPT FEMALE 1000WOG 3-PIECE FULL BORE BALL VALVE HOKE CF8M/304 TRIM ISO MOUNT PAD

3-Piece Full Port Ball Valve, NPT Threaded Ends, 1 1/2" 1000PSI (69 Bar) W.O.G, Enclosed Bolt Type, ISO 5211 Direct Actuator Mounting Pad
- +
7520F4Y-RH-AX

8NPT FEMALE 1000WOG 3-PIECE FULL BORE BALL VALVE HOKE CF8M/304 TRIM ISO MOUNT PAD

3-Piece Full Port Ball Valve, NPT Threaded Ends, 1/4" 1000PSI (69 Bar) W.O.G, Enclosed Bolt Type, ISO 5211 Direct Actuator Mounting Pad
- +
7520F12Y-RH-AX

20NPT FEMALE 1000WOG 3-PIECE FULL BORE BALL VALVE HOKE CF8M/304 TRIM ISO MOUNT PAD

3-Piece Full Port Ball Valve, NPT Threaded Ends, 3/4" 1000PSI (69 Bar) W.O.G, Enclosed Bolt Type, ISO 5211 Direct Actuator Mounting Pad
- +
7520F20Y-RH-AX

32NPT FEMALE 1000WOG 3-PIECE FULL BORE BALL VALVE HOKE CF8M/304 TRIM ISO MOUNT PAD

3-Piece Full Port Ball Valve, NPT Threaded Ends, 1 1/4" 1000PSI (69 Bar) W.O.G, Enclosed Bolt Type, ISO 5211 Direct Actuator Mounting Pad
- +
7520F32Y-RH-AX

50NPT FEMALE 1000WOG 3-PIECE FULL BORE BALL VALVE HOKE CF8M/304 TRIM ISO MOUNT PAD

3-Piece Full Port Ball Valve, NPT Threaded Ends, 2" 1000PSI (69 Bar) W.O.G, Enclosed Bolt Type, ISO 5211 Direct Actuator Mounting Pad
- +
7510F4Y-RH-FTAX

8NPT 2000WOG FULL PORT 2-PCE BALL VALVE HOKE TAPPED MOUNT PAD ALL CF8M BODY & TRIM

Full Bore 2-piece threaded valves allowing straight-through flow. Virtually no head loss and a superior performer with mildly abrasive as well as corrosive fluids. Ideal for in-line control of process fluids.
- +
7510F6Y-RH-FTAX

10NPT 2000WOG FULL PORT 2-PCE BALL VALVE HOKE TAPPED MOUNT PAD ALL CF8M BODY & TRIM

Full Bore 2-piece threaded valves allowing straight-through flow. Virtually no head loss and a superior performer with mildly abrasive as well as corrosive fluids. Ideal for in-line control of process fluids.
- +
7510F8Y-RH-FTAX

15NPT 2000WOG FULL PORT 2-PCE BALL VALVE HOKE TAPPED MOUNT PAD ALL CF8M BODY & TRIM

Full Bore 2-piece threaded valves allowing straight-through flow. Virtually no head loss and a superior performer with mildly abrasive as well as corrosive fluids. Ideal for in-line control of process fluids.
- +
7510F12Y-RH-FTAX

20NPT 2000WOG FULL PORT 2-PCE BALL VALVE HOKE TAPPED MOUNT

Full Bore 2-piece threaded valves allowing straight-through flow. Virtually no head loss and a superior performer with mildly abrasive as well as corrosive fluids. Ideal for in-line control of process fluids.
- +
7510F16Y-RH-FTAX

25NPT 2000WOG FULL PORT 2-PCE BALL VALVE HOKE TAPPED MOUNT

Full Bore 2-piece threaded valves allowing straight-through flow. Virtually no head loss and a superior performer with mildly abrasive as well as corrosive fluids. Ideal for in-line control of process fluids.
- +
7510F20Y-RH-FTAX

32NPT 2000WOG FULL PORT 2-PCE BALL VALVE HOKE TAPPED MOUNT PAD ALL CF8M BODY & TRIM

Full Bore 2-piece threaded valves allowing straight-through flow. Virtually no head loss and a superior performer with mildly abrasive as well as corrosive fluids. Ideal for in-line control of process fluids.
- +
7510F24Y-RH-FTAX

40NPT 2000WOG FULL PORT 2-PCE BALL VALVE HOKE TAPPED MOUNT PAD ALL CF8M BODY & TRIM

Full Bore 2-piece threaded valves allowing straight-through flow. Virtually no head loss and a superior performer with mildly abrasive as well as corrosive fluids. Ideal for in-line control of process fluids.
- +
7510F32Y-RH-FTAX

50NPT 2000WOG FULL PORT 2-PCE BALL VALVE HOKE TAPPED MOUNT PAD ALL CF8M BODY & TRIM

Full Bore 2-piece threaded valves allowing straight-through flow. Virtually no head loss and a superior performer with mildly abrasive as well as corrosive fluids. Ideal for in-line control of process fluids.
- +
8PP-316

15NPT HEX PLUG HOKE 316

PP Plug (male NPT)
- +
6AP-316

10NPT ADAPTER M/F HOKE 316

AP Adapter (female NPT same size male NPT)
- +
4CSP-316

8NPT CROSS FEMALE HOKE 316

CSP Cross
- +
6RBP2-316

10NPT X 6NPT REDUCING BUSH HOKE 316

RBP Reducing Bushing (male NPT to reduced female NPT)
- +
2CPP-316

6NPT HEX CAP HOKE 316

CPP Cap (female NPT)
- +
4FTP-316

8NPT FEMALE TEE HOKE 316

FTP Female Tee (female NPT all ports)
- +
6FTP-316

10NPT FEMALE TEE HOKE 316

FTP Female Tee (female NPT all ports)
- +
2CGP-316

6NPT HEX COUPLING HOKE 316

CGP Hex Coupling (female NPT both ends)
- +
16STP-316

25NPT STREET TEE HOKE 316

STP Street Tee (female by male run/female branch)
16FTP-316

25NPT FEMALE TEE HOKE 316

FTP Female Tee (female NPT all ports)
12FT/BM12-316

20NPT X 20NPT MALE BRANCH TEE HOKE 316

FTBM Male Branch Tee (female run/male branch)
12MTP-316

20NPT MALE TEE HOKE 316

MTP Male Tee (male NPT all ports)
8LNP-316/400

15NPT X 100MM LG LONG HEX NIPPLE HOKE 316

LNP Hex Long Nipple (male NPT both ends)
12RNP4-316

20NPT X 8NPT REDUCING NIPPLE HOKE 316

RNP Hex Reducing Nipple (male NPT to reduced male NPT)
6CGP-316

10NPT HEX COUPLING HOKE 316

CGP Hex Coupling (female NPT both ends)
- +
4RCGP2-316

8NPT X 6NPT REDUCING COUPLING HOKE 316

RCGP Reducing Coupling (female NPT to reduced female NPT)
- +
2SLP-316

6NPT 90D STREET ELBOW HOKE 316

SLP Street Elbow (female to male NPT)
- +
2MLP-316

6NPT 90D MALE ELBOW HOKE 316

MLP Male Elbow (male NPT both ends)
- +
6RSLP4-316

10NPT X 8NPT 90D REDUCING STREET ELBOW HOKE 316

RSLP Reducing Street Elbow (female NPT reduced male NPT)
- +
2MTP-316

6NPT MALE TEE HOKE 316

MTP Male Tee (male NPT all ports)
- +
2STP-316

6NPT STREET TEE HOKE 316

STP Street Tee (female by male run/female branch)
- +
4RNP2-316

8NPT X 6NPT REDUCING NIPPLE HOKE 316

RNP Hex Reducing Nipple (male NPT to reduced male NPT)
- +
2NP-316

6NPT HEX NIPPLE HOKE 316

NP Hex Nipple (male NPT both ends)
- +
4LNP-316/400

8NPT X 100MM LG LONG HEX NIPPLE HOKE 316

LNP Hex Long Nipple (male NPT both ends)
- +
6LNP-316/200

10NPT X 50MM LG LONG HEX NIPPLE HOKE 316

LNP Hex Long Nipple (male NPT both ends)
- +
8LNP-316/300

15NPT X 80MM LG LONG HEX NIPPLE HOKE 316

LNP Hex Long Nipple (male NPT both ends)
- +
4LNP-316/250

8NPT X 65MM LG LONG HEX NIPPLE HOKE 316

LNP Hex Long Nipple (male NPT both ends)
- +
7510F12Y

20NPT 2000WOG STANDARD PORT BALL VALVE HOKE CF8M TAPPED MOUNT PAD

2-Piece Standard Port Ball Valves, Threaded 20NPT Ends, 2000PSI (138 Bar) W.O.G.
- +
2PST

3.2MM HOKE PRE-SETTING TOOL

Used strictly for pre-assembling ferrules to tubing.
Threads of pre-setting tools should be lubricated the very first time and relubricated every tenth time thereafter.

Technical Information
- +
8PST

12.7MM HOKE PRE-SETTING TOOL

Used strictly for pre-assembling ferrules to tubing.
Threads of pre-setting tools should be lubricated the very first time and relubricated every tenth time thereafter.

Technical Information
- +
4PST

6.3MM HOKE PRE-SETTING TOOL

Used strictly for pre-assembling ferrules to tubing.
Threads of pre-setting tools should be lubricated the very first time and relubricated every tenth time thereafter.

Technical Information
- +
6PST

9.5MM HOKE PRE-SETTING TOOL

Used strictly for pre-assembling ferrules to tubing.
Threads of pre-setting tools should be lubricated the very first time and relubricated every tenth time thereafter.

Technical Information
- +
16PST

25.4MM HOKE PRE-SETTING TOOL

Used strictly for pre-assembling ferrules to tubing.
Threads of pre-setting tools should be lubricated the very first time and relubricated every tenth time thereafter.

Technical Information
- +
468GMT

HOKE DEPTH GAUGE SUIT 6.35MM 9.5MM & 12.7MM

Tube fitting users have long recognized that proper tube and tube fitting system function requires good tubing preparation followed by the use of correct installation procedures. Improper ferrule set in any flareless tube and fitting system may be the result of burrs created during the tube cutting process, improper tube insertion into the fitting, or inadequate tightening of the fitting nut. In order to maximize tube and fitting system performance and safety, HOKE offers several tool options
- +
12GMT

19.1MM HOKE DEPTH GAUGE

The Gyrolok® Marking Tool provides the installer with an economical means of ensuring both proper tubing insertion into the fitting and adequate nut tightening.
Technical Information
- +
10GMT

15.8MM HOKE DEPTH GAUGE

The Gyrolok® Marking Tool provides the installer with an economical means of ensuring both proper tubing insertion into the fitting and adequate nut tightening.
Technical Information
- +
16GMT

25.4MM HOKE DEPTH GAUGE

The Gyrolok® Marking Tool provides the installer with an economical means of ensuring both proper tubing insertion into the fitting and adequate nut tightening.
Technical Information
- +
24GMT

38.1MM HOKE DEPTH GAUGE

The Gyrolok® Marking Tool provides the installer with an economical means of ensuring both proper tubing insertion into the fitting and adequate nut tightening.
Technical Information
6610M8Y

15NPT MALE 6000PSI BLEED VALVE 316

- +
6610M4Y

8NPT MALE 6000PSI BLEED VALVE 316

- +
6610M2Y

6NPT MALE 6000PSI BLEED VALVE 316

- +
7510F6Y

10NPT 2000WOG STANDARD PORT BALL VALVE HOKE CF8M TAPPED MOUNT PAD

2-Piece Standard Port Ball Valve, Threaded 10NPT Ends, 2000PSI (138 Bar) W.O.G.
- +
7115F6Y

10NPT FEMALE 6000PSI BALL VALV FORGED BODY 316 FLOMITE

2-way Integral Panel Mount Ball Valves Used for quick on-off service with a visual indication of flow, HOKE’s 2-way ball valves offer orifice sizes up to 0.25” (6.4mm). Flomite valves feature a floating ball design, encapsulated replaceable seats and check seals to ensure leak-tight service and extended service life.
4CNP-316

8NPT CLOSE NIPPLE HOKE 316

Close Nipple (male NPT both ends)
- +
6CNP-316

10NPT CLOSE NIPPLE HOKE 316

Close Nipple (male NPT both ends)
- +
8CNP-316

15NPT CLOSE NIPPLE HOKE 316

Close Nipple (male NPT both ends)
- +
12CNP-316

20NPT CLOSE NIPPLE HOKE 316

Close Nipple (male NPT both ends)
- +
6610M16Y

25NPT MALE 6000PSI BLEED VALVE HOKE 316

Bleed Valve
- +
6610M24Y

40NPT MALE 6000PSI BLEED VALVE HOKE 316

Bleed Valve
- +
6610M32Y

50NPT MALE 6000PSI BLEED VALVE HOKE 316

Bleed Valve
- +
7510F4Y

8NPT 2000WOG STANDARD PORT BALL VALVE HOKE CF8M TAPPED MOUNT PAD

2-Piece Standard Port Ball Valve, Threaded 8NPT Ends, 2000PSI (138 Bar) W.O.G.
- +
7510F16Y

25NPT 2000WOG STANDARD PORT BALL VALVE HOKE CF8M TAPPED MOUNT PAD

2-Piece Standard Port Ball Valve, Threaded 25NPT Ends, 2000PSI (138 Bar) W.O.G.
- +
7520F6Y

10NPT FEMALE 3000WOG 3-PIECE BALL VALVE HOKE CF8M MOUNT PAD

3-Piece Full Port Ball Valves, Threaded 10NPT (3/8") Ends, 3000PSI (207 Bar) W.O.G, Enclosed Bolt Type, ISO 5211 Direct Actuator Mounting Pad
- +
7520F8Y

15NPT FEMALE 3000WOG 3-PIECE BALL VALVE HOKE CF8M MOUNT PAD

3-Piece Full Port Ball Valves, Threaded 15NPT (1/2") Ends, 3000PSI (207 Bar) W.O.G, Enclosed Bolt Type, ISO 5211 Direct Actuator Mounting Pad
- +
7520F12Y

20NPT FEMALE 2000WOG 3-PIECE BALL VALVE HOKE CF8M MOUNT PAD

3-Piece Full Port Ball Valves, Threaded 20NPT (3/4") Ends, 2000PSI (138 Bar) W.O.G, Enclosed Bolt Type, ISO 5211 Direct Actuator Mounting Pad
- +
6610M6Y

10NPT MALE 6000PSI BLEED VALVE 316

- +
6NP-6MO

10NPT HEX NIPPLE HOKE S31254

NP Hex Nipple (male NPT both ends)
7E2TG08G08YKS20

12.7OD GYROLOK 2500PSI HOKE BALL VALVE 7.5Cv 3-PCE BOLTED BODY/BOLTING/HANDLE 316

2-way-3-piece-bolted-ball-valves-7-series
Technical Information
Hoke 7 Series high performance, bi-directional ball valves exceed 50,000 cycles (For best results use a filter upstream to the valve. Dirty, errosive and corrosive fluids may affect the cycle life of the valve, cycle life is based on working pressures less than 150 psig.) with Zero leakage per API 598. The 7 Series includes an energized PTFE stem seal and live loaded seats which require no adjustment over the life of the valve. 2-way valves can be configured for unidirectional flow by replacing standard seat rings with opposing curved disc spring seats. 7 series come standard in 316 stainless steel, and special alloys when requested. A variety of handles and remote actuation packages are available.
12NP-6MO

20NPT HEX NIPPLE HOKE S31254

NP Hex Nipple (male NPT both ends)
2219F6Y

10NPT FEMALE 6000PSI NEEDLE VALVE SEVERE SERVICE 316 HOKE

The new Hoke 2219 Needle Valve is an excellent choice for many steam- and severe service applications. Grafoil packing below the stem threads provides exceptional service at temperatures up to +1000° F (+538° C). The nonrotating 316 stainless steel stem tip prevents galling.
- +
2219F4Y

8NPT FEMALE 6000PSI NEEDLE VALVE SEVERE SERVICE 316 HOKE

The new Hoke 2219 Needle Valve is an excellent choice for many steam- and severe service applications. Grafoil packing below the stem threads provides exceptional service at temperatures up to +1000° F (+538° C). The nonrotating 316 stainless steel stem tip prevents galling.
Technical Information
- +
2219F12Y

20NPT FEMALE 6000PSI NEEDLE VALVE SEVERE SERVICE 316 HOKE

The new Hoke 2219 Needle Valve is an excellent choice for many steam- and severe service applications. Grafoil packing below the stem threads provides exceptional service at temperatures up to +1000° F (+538° C). The nonrotating 316 stainless steel stem tip prevents galling.
Technical Information
- +
2219F16Y

25NPT FEMALE 6000PSI NEEDLE VALVE SEVERE SERVICE 316 HOKE

The new Hoke 2219 Needle Valve is an excellent choice for many steam- and severe service applications. Grafoil packing below the stem threads provides exceptional service at temperatures up to +1000° F (+538° C). The nonrotating 316 stainless steel stem tip prevents galling.
Technical Information
- +
2219G12Y

19.1OD TUBE 6000PSI NEEDLE VALVE SEVERE SERVICE 316

The new Hoke 2219 Needle Valve is an excellent choice for many steam- and severe service applications. Grafoil packing below the stem threads provides exceptional service at temperatures up to +1000° F (+538° C). The nonrotating 316 stainless steel stem tip prevents galling.
Technical Information
- +
2219G4Y

6.3OD TUBE 6000PSI NEEDLE VALVE SEVERE SERVICE 316

The new Hoke 2219 Needle Valve is an excellent choice for many steam- and severe service applications. Grafoil packing below the stem threads provides exceptional service at temperatures up to +1000° F (+538° C). The nonrotating 316 stainless steel stem tip prevents galling.
Technical Information
- +
2219G16Y

25.4OD TUBE 6000PSI NEEDLE VALVE SEVERE SERVICE 316

The new Hoke 2219 Needle Valve is an excellent choice for many steam- and severe service applications. Grafoil packing below the stem threads provides exceptional service at temperatures up to +1000° F (+538° C). The nonrotating 316 stainless steel stem tip prevents galling.
Technical Information
- +
2219G6Y

9.5OD TUBE 6000PSI NEEDLE VALVE SEVERE SERVICE 316

The new Hoke 2219 Needle Valve is an excellent choice for many steam- and severe service applications. Grafoil packing below the stem threads provides exceptional service at temperatures up to +1000° F (+538° C). The nonrotating 316 stainless steel stem tip prevents galling.
- +
2219F8Y

15NPT FEMALE 6000PSI NEEDLE VALVE SEVERE SERVICE 316

The new Hoke 2219 Needle Valve is an excellent choice for many steam- and severe service applications. Grafoil packing below the stem threads provides exceptional service at temperatures up to +1000° F (+538° C). The nonrotating 316 stainless steel stem tip prevents galling.
Technical Information
- +
1711F4Y

8NPT FEMALE 6000PSI CYLINDER VALVE FORGED BODY 316

These affordable valves are suited for a wide variety of process control applications. Non-rotating stainless steel or replaceable PCTFE stem tips reduce galling. Dyna-Pak packing below the stem threads prevents fugitive emissions.
- +
1711G4Y

6.3OD TUBE 6000PSI CYLINDER VALVE FORGED BODY 316

These affordable valves are suited for a wide variety of process control applications. Non-rotating stainless steel or replaceable PCTFE stem tips reduce galling. Dyna-Pak packing below the stem threads prevents fugitive emissions.
Technical Information
- +
1711G6Y

9.5OD TUBE 6000PSI CYLINDER VALVE FORGED BODY 316

These affordable valves are suited for a wide variety of process control applications. Non-rotating stainless steel or replaceable PCTFE stem tips reduce galling. Dyna-Pak packing below the stem threads prevents fugitive emissions.
Technical Information
- +
2152F8Y

15NPT FEMALE 6000PSI NEEDLE VALVE BAR STOCK 316 KEL-F STEM

This panel mountable, two-piece design is available in globe and angle patterns for fl exibility of installation. Dyna-Pak packing provides leak-tight sealing with low operating torque. Optional Graph-Lock packing is available for high-temperature applications. The safety back-seating prevents accidental removal of the stem. Technical Information
- +
4CM2-316EB

6.3MM OD X 6BSPP CONNECTOR MALE GYROLOK 316

ConnectsFractionaltube with RP parallel threads RP parallel thread ends are typically used with a flat gasket to seal.
Technical Information
- +
16RAP12-316

25NPT X 20NPT REDUCING ADAPTER HOKE 316

RAP Reducing Adapter (female NPT to reduced male NPT)
- +
7520F16Y-RH-AX

25NPT FEMALE 1000WOG 3-PIECE FULL BORE BALL VALVE HOKE CF8M/304 TRIM ISO MOUNT PAD

3-Piece Full Port Ball Valve, NPT Threaded Ends, 1" 1000PSI (69 Bar) W.O.G, Enclosed Bolt Type, ISO 5211 Direct Actuator Mounting Pad
- +
6610M12Y

20NPT MALE 6000PSI BLEED VALVE HOKE 316

Bleed Valve
- +
6670G8Y

12.7OD TUBE 6000PSI BLEED UNION VALVE HOKE 316

Bleed Union Valve
Technical Information
6670G4Y

6.3OD TUBE 6000PSI BLEED UNION VALVE 316 HOKE

Bleed Union Valve
Technical Information
Close
Filter by Clear All
  • NPT FEMALE
  • NPT MALE
  • TUBE
  • TUBE

Newsletter Subscription

Close
