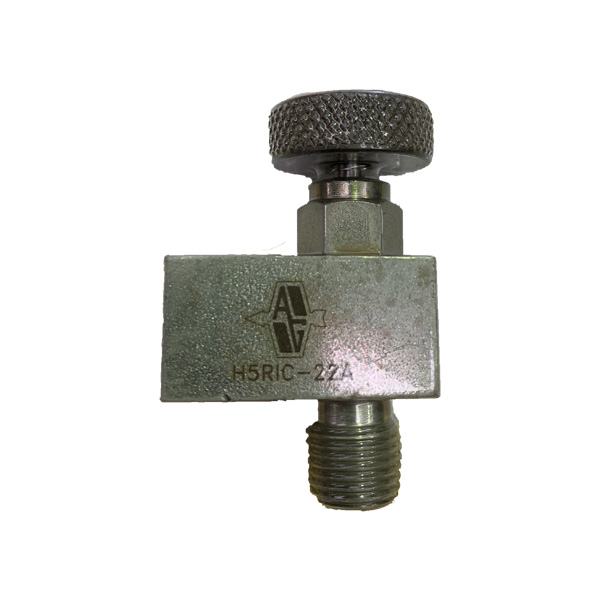

8NPT M/F 6000PSI ANGLE MINI HAND VALVE O-RING PACK HARD SEAT CARBON STEEL AGCO T2

Brand: Anderson Greenwood
Item Code: H5RIC-22A-T2
A miniature isolation valve with an interchangeable hard or soft seat for pressures to 6000 psig (414 barg)
The H5 mini valves facilitate safe, compact and economical installations and are excellent for straight isolation applications.
Product Files

Features

  • Packing below threads (O-ring bonnet) prevents lubricant washout, thread corrosion, process contamination and eliminates galling.
  • Easily adjustable packing decreases replacement downtime and increases valve life.
  • Safety back seating prevents stem blowout or removal during operation and provides a metal-to-metal secondary stem seal while in the fully open position.
  • ENC plated 316 SS prevents galling or freezing of stem threads.
  • Rolled stem, bonnet and male NPT threads provide additional strength.
  • Mirror stem finish in the packing area enables smooth operation and extends packing life.
  • One-piece handle design prevents loss due to vibration or during maintenance.
  • Soft or metal seat for bubble-tight shutoff is field-replaceable for easy maintenance.
  • Extended valve life: damaged soft seat can be removed, leaving a metal seated valve.
Products specifications
Material / GradeCarbon Steel
Valve TypeHand & Needle
Connection Size6.3 (1/4")
Connection TypeNPT MALE
Connection Size 26.3 (1/4")
Connection Type 2NPT FEMALE
Working Pressure6,000 PSI (414 barg)

Attachments

Features

  • Packing below threads (O-ring bonnet) prevents lubricant washout, thread corrosion, process contamination and eliminates galling.
  • Easily adjustable packing decreases replacement downtime and increases valve life.
  • Safety back seating prevents stem blowout or removal during operation and provides a metal-to-metal secondary stem seal while in the fully open position.
  • ENC plated 316 SS prevents galling or freezing of stem threads.
  • Rolled stem, bonnet and male NPT threads provide additional strength.
  • Mirror stem finish in the packing area enables smooth operation and extends packing life.
  • One-piece handle design prevents loss due to vibration or during maintenance.
  • Soft or metal seat for bubble-tight shutoff is field-replaceable for easy maintenance.
  • Extended valve life: damaged soft seat can be removed, leaving a metal seated valve.
