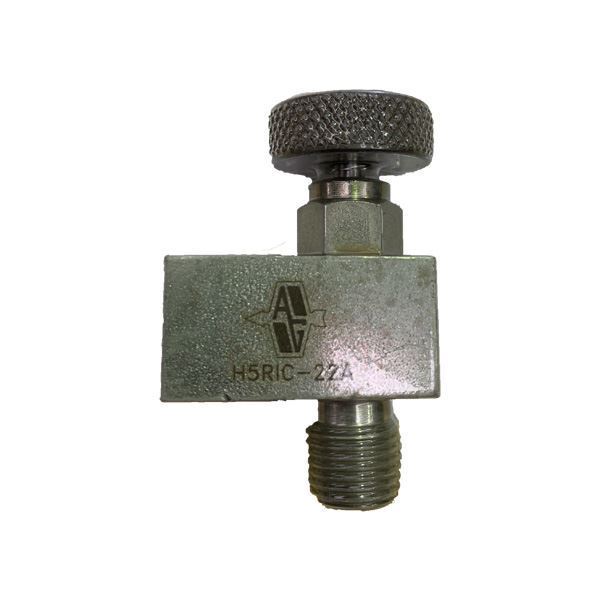

8NPT M/F 6000PSI ANGLE MINI HAND VALVE O-RING PACK HARD SEAT CARBON STEEL AGCO

Item Code: H5RIC-22A
Delivery date: 1-2 days
A miniature isolation valve with an interchangeable hard or soft seat for pressures to 6000 psig (414 barg)
Product Files

Features

  • Packing below threads (O-ring bonnet) prevents lubricant washout, thread corrosion, process contamination and eliminates galling.
  • Easily adjustable packing decreases replacement downtime and increases valve life.
  • Safety back seating prevents stem blowout or removal during operation and provides a metal-to-metal secondary stem seal while in the fully open position.
  • ENC plated 316 SS prevents galling or freezing of stem threads.
  • Rolled stem, bonnet and male NPT threads provide additional strength.
  • Mirror stem finish in the packing area enables smooth operation and extends packing life.
  • One-piece handle design prevents loss due to vibration or during maintenance.
  • Soft or metal seat for bubble-tight shutoff is field-replaceable for easy maintenance.
  • Extended valve life: damaged soft seat can be removed, leaving a metal seated valve.
Products specifications
Valve TypeHand & Needle
MaterialCarbon Steel
Connection Size6.3 (1/4")
Connection TypeNPT MALE
Connection Size 26.3 (1/4")
Connection Type 2NPT FEMALE
Working Pressure6,000 PSI (414 barg)

Attachments

Features

  • Packing below threads (O-ring bonnet) prevents lubricant washout, thread corrosion, process contamination and eliminates galling.
  • Easily adjustable packing decreases replacement downtime and increases valve life.
  • Safety back seating prevents stem blowout or removal during operation and provides a metal-to-metal secondary stem seal while in the fully open position.
  • ENC plated 316 SS prevents galling or freezing of stem threads.
  • Rolled stem, bonnet and male NPT threads provide additional strength.
  • Mirror stem finish in the packing area enables smooth operation and extends packing life.
  • One-piece handle design prevents loss due to vibration or during maintenance.
  • Soft or metal seat for bubble-tight shutoff is field-replaceable for easy maintenance.
  • Extended valve life: damaged soft seat can be removed, leaving a metal seated valve.
Products specifications
Valve TypeHand & Needle
MaterialCarbon Steel
Connection Size6.3 (1/4")
Connection TypeNPT MALE
Connection Size 26.3 (1/4")
Connection Type 2NPT FEMALE
Working Pressure6,000 PSI (414 barg)
