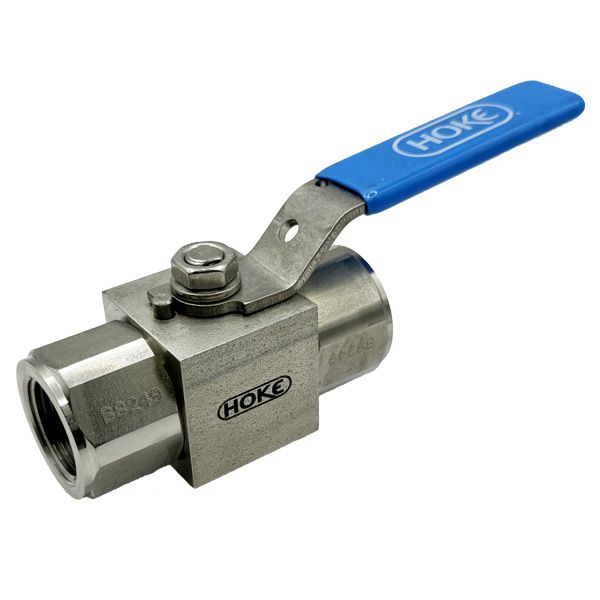

8NPT FEMALE 6000PSI BALL VALVE BAR STOCK 316 ROTOBALL LOW PROFILE

Brand: HOKE
Item Code: 7C23F4Y
7C ball valve is designed for a range of media up to 6,000 psi. Its internally loaded blow-out proof stem and floating ball for positive shut-off along with its other features offer a robust, compact and easy to operate valve solution. The 7C is available in 1/4" thru 1" NPT connections.
Technical Information

Features

  • Female NPT sizes 1/4", 3/8", 1/2", 3/4" and 1"
  • Working pressures up to 6,000 psi
  • Maximum operating temperature 150 Cº
  • Internally loaded blow-out proof stem
  • Floating ball for positive shut-off
  • Low operating torque
  • Smooth 1/4 turn actuation
  • 316 SS to NACE MR-01-75/ISO 15156
  • Replaceable seats and seals
  • Full material traceability
  • Special High Tolerance NPT thread

Application

  • Controls and instrumentation isolation and venting
  • Hydrocarbon Gas and Liquid service
  • Hydraulic applications
  • Wellhead Control Panels
  • Chemical Injection Skids
  • Utility services
Products specifications
Material / GradeSS316
Valve TypeBall
Working Pressure6,000 PSI (414 barg)
End Connection Type 1NPT FEMALE
End Connection Size 16.3 (1/4")
End Connection Type 2NPT FEMALE
End Connection Size 26.3 (1/4")

Attachments

Features

  • Female NPT sizes 1/4", 3/8", 1/2", 3/4" and 1"
  • Working pressures up to 6,000 psi
  • Maximum operating temperature 150 Cº
  • Internally loaded blow-out proof stem
  • Floating ball for positive shut-off
  • Low operating torque
  • Smooth 1/4 turn actuation
  • 316 SS to NACE MR-01-75/ISO 15156
  • Replaceable seats and seals
  • Full material traceability
  • Special High Tolerance NPT thread

Application

  • Controls and instrumentation isolation and venting
  • Hydrocarbon Gas and Liquid service
  • Hydraulic applications
  • Wellhead Control Panels
  • Chemical Injection Skids
  • Utility services
