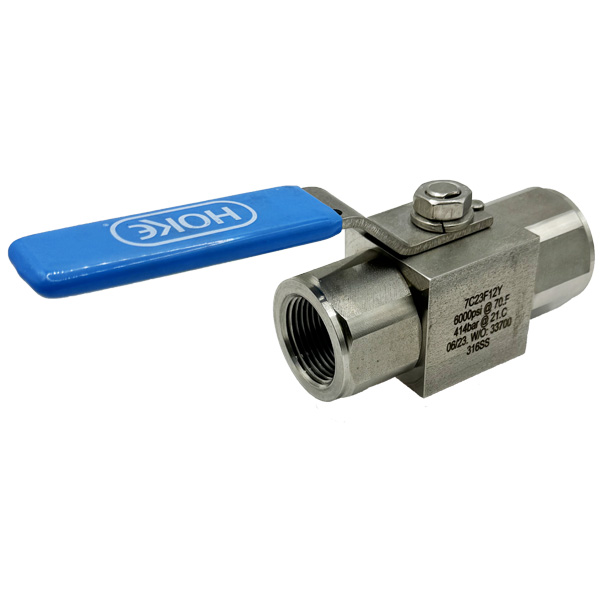

20NPT FEMALE 6000PSI BALL VALVE BAR STOCK 316 ROTOBALL LOW PROFILE

Brand: HOKE
Item Code: 7C23F12Y
7C ball valve is designed for a range of media up to 6,000 psi. Its internally loaded blow-out proof stem and floating ball for positive shut-off along with its other features offer a robust, compact and easy to operate valve solution. The 7C is available in 1/4" thru 1" NPT connections.

  • Features

    • Female NPT sizes 1/4", 3/8", 1/2", 3/4" and 1"
    • Working pressures up to 6,000 psi
    • Maximum operating temperature 150 Cº
    • Internally loaded blow-out proof stem
    • Floating ball for positive shut-off
    • Low operating torque
    • Smooth 1/4 turn actuation
    • 316 SS to NACE MR-01-75/ISO 15156
    • Replaceable seats and seals
    • Full material traceability
    • Special High Tolerance NPT thread

    Application

    • Controls and instrumentation isolation and venting
    • Hydrocarbon Gas and Liquid service
    • Hydraulic applications
    • Wellhead Control Panels
    • Chemical Injection Skids
    • Utility services
Products specifications
Material / GradeSS316
Valve TypeBall
Working Pressure6,000 PSI (414 barg)
End Connection Type 1NPT FEMALE
End Connection Size 119.1 (3/4")
End Connection Type 2NPT FEMALE
End Connection Size 219.1 (3/4")
