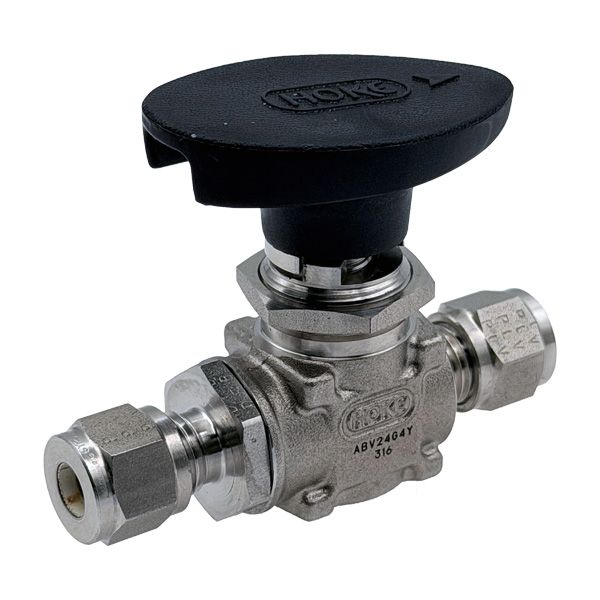

6.3OD TUBE 3000PSI BALL VALVE

Brands: HOKE , Gyrolok - Crane
Item Code: ABV24G4Y
6.3 OD (1/4") TUBE 3000PSI BALL VALVE 0.8Cv PTFE PACK ABV HOKE FE 316
For demanding process applications, that handle corrosive and hazardous media, the Hoke ABV series offers extended service life, reduced fugitive emissions, and superior sealing, in a compact body.

DESIGN FEATURES
• Integral / GYROLOK® tube connections
• Female & Male NPT connections
• Sizes 1⁄8˝, 1⁄4˝, 3⁄8˝, 1⁄2˝, 6mm, 8mm, 10mm, 12mm
• Working pressures up to 3,000 psi
• Maximum operating temperature 150ºC
• Minimum operating temperature -54ºC
• Dyna-Pak stem packing
• ISO 15848-1 Fugitive Emissions certified

TYPICAL APPLICATIONS
• Analyzer sample conditioning systems
• Controls & instrumentation isolation and
venting
• Measurement and regulating equipment
• Hydraulic applications

Products specifications
Material / GradeSS316
Valve TypeBall
Working Pressure3,000 PSI (207 barg)
End Connection Type 1GYROLOK
End Connection Size 16.3 (1/4")
End Connection Type 2GYROLOK
End Connection Size 26.3 (1/4")

Attachments

DESIGN FEATURES
• Integral / GYROLOK® tube connections
• Female & Male NPT connections
• Sizes 1⁄8˝, 1⁄4˝, 3⁄8˝, 1⁄2˝, 6mm, 8mm, 10mm, 12mm
• Working pressures up to 3,000 psi
• Maximum operating temperature 150ºC
• Minimum operating temperature -54ºC
• Dyna-Pak stem packing
• ISO 15848-1 Fugitive Emissions certified

TYPICAL APPLICATIONS
• Analyzer sample conditioning systems
• Controls & instrumentation isolation and
venting
• Measurement and regulating equipment
• Hydraulic applications
