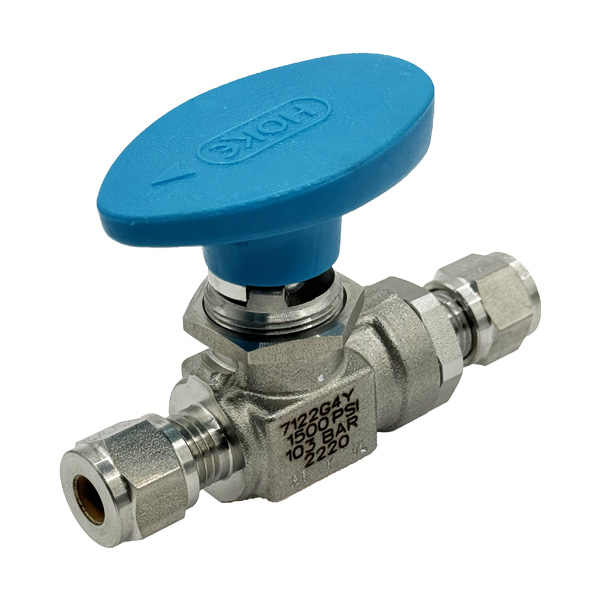

6.3OD TUBE 1500PSI BALL VALVE

Brands: HOKE , Gyrolok - Crane
Item Code: 7122G4Y
Delivery date: 1-2 days
2-way Integral Panel Mount Ball Valves
Used for quick on-off service with a visual indication of flow, HOKE’s 2-way ball valves offer orifice sizes up to 0.25” (6.4mm). Flomite valves feature a floating ball design, encapsulated replaceable seats and check seals to ensure leak-tight service and extended service life.
Technical Information

Typical Applications

  • Instrument panels
  • High pressure instrument lines
  • Gas sampling in pilot plants
  • Full flow and shutoff in chromatographs
  • Hydraulic test stands
  • Gas sampling

Features & Benefits

  • Quarter turn handle provides a visual indication of on/off valve position, improving safety.
  • Dual encapsulated TFE seats and microfinished ball ensure a leak tight seal. This combination provides greater valve reliability.
  • Dyna-Pak packing provides a leak-tight seal with low operating torque in vacuum or high pressure applications, helping to prevent fugitive emissions.
  • Floating ball provides pressure-assisted sealing and temperature wear compensation for longer valve cycle life and greater value.
  • A wide variety of Hoke Gyrolok end fittings or pipe fittings provide the correct fitting option for the application.
Products specifications
Valve TypeBall
MaterialSS316
Working Pressure1,500 PSI (103 barg)
End Connection Type 1GYROLOK
End Connection Size 16.3 (1/4")
End Connection Type 2GYROLOK
End Connection Size 26.3 (1/4")

Attachments

Typical Applications

  • Instrument panels
  • High pressure instrument lines
  • Gas sampling in pilot plants
  • Full flow and shutoff in chromatographs
  • Hydraulic test stands
  • Gas sampling

Features & Benefits

  • Quarter turn handle provides a visual indication of on/off valve position, improving safety.
  • Dual encapsulated TFE seats and microfinished ball ensure a leak tight seal. This combination provides greater valve reliability.
  • Dyna-Pak packing provides a leak-tight seal with low operating torque in vacuum or high pressure applications, helping to prevent fugitive emissions.
  • Floating ball provides pressure-assisted sealing and temperature wear compensation for longer valve cycle life and greater value.
  • A wide variety of Hoke Gyrolok end fittings or pipe fittings provide the correct fitting option for the application.
