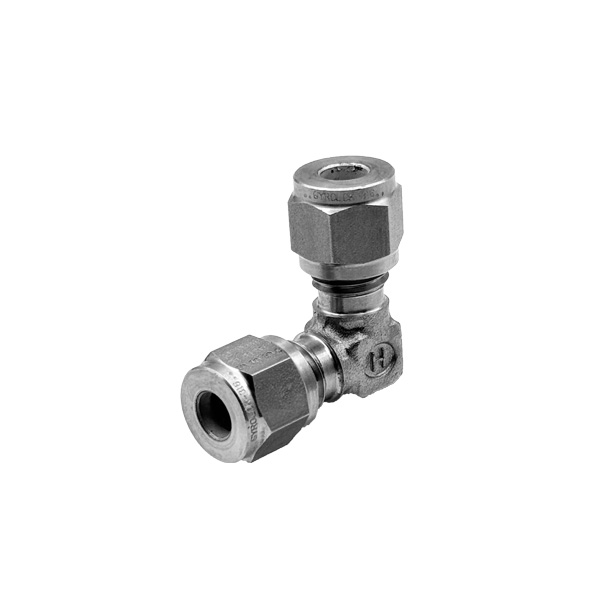

6.3MM OD 90D ELBOW UNION GYROLOK 316

Brand: Gyrolok - Crane
Item Code: 4LU-316
Delivery date: 1-2 days
Connects 1/4" OD fractional tubes
 Technical Information
Products specifications
Material / Grade SS316
End Connection Size 1 6.3 (1/4")
End Connection Size 2 6.3 (1/4")
End Connection Type 1 TUBE
End Connection Type 2 TUBE
Fitting Type ELBOW 90

Attachments
