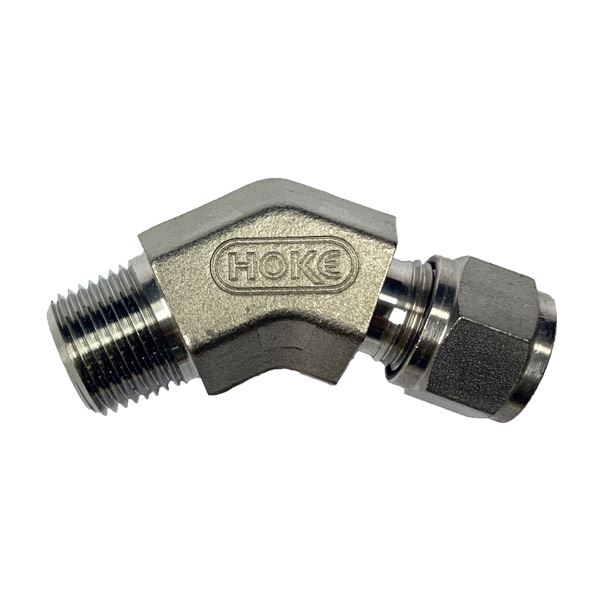

6.3MM OD X 8NPT 45D ELBOW MALE GYROLOK 316

Item Code: 4LMF4-316

Technical Information

Material

316 Stainless Steel

T - Tube O.D.

1/4 in

P - Pipe Thread

1/4

A

1.11 in

B - Hex Flat

9/16 in

C-Wrench Pad

0.625 in

D

.64 in

E min

0.19 in

G

.78 in

H

.56 in

H1

1 in

Products specifications
End Connection Size 16.3 (1/4")
End Connection Size 26.3 (1/4")
End Connection Type 1TUBE
End Connection Type 2NPT
Material / GradeSS316/316L
