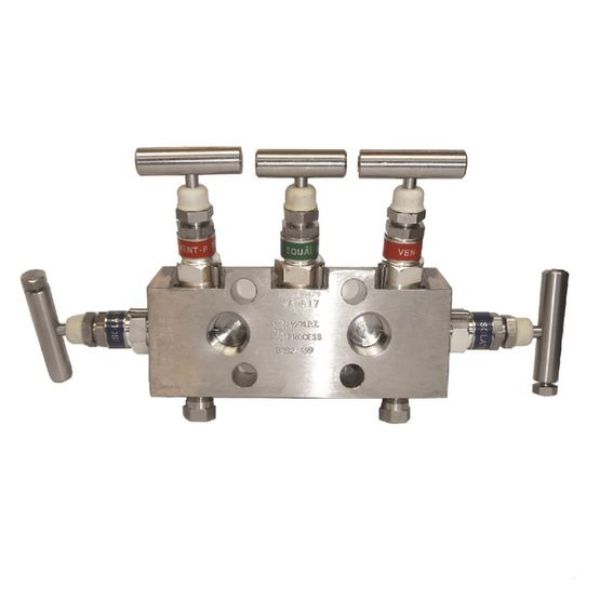

15NPT X FLANGE 6000PSI 5-VALVE DIRECT DP MANIFOLD TEFLON PACK HARD SEAT ALL 316 AGCO T2

Brand: Anderson Greenwood
Item Code: A26TVIS-4-SS-T2
The A26 is a five-valve manifold that enables instrument operation, isolation, zeroing, calibration and venting to close the system in a single unit. It is suitable for liquid or vapor service.
Product Files
AGCO

Features

  • Direct mounting compact design requires minimum space for operation and installation with fewer potential leak points.
  • Cost savings when manifolding the valves by eliminating several parts used in conventional methods of ‘piping up’.
  • Free-swivelling ball end stem ensures perfect alignment, providing repetitive bubble-tight shutoff and long life.
  • PTFE or graphite packing below stem threads prevents lubricant washout and thread corrosion.
  • Back seat stem prevents blowout or accidental removal while in operation.
  • Threaded ¼” NPT vent ports allow vent to be piped away safely. Supplied plugged as standard.
  • Couples directly via standard instrument side flanged connections on 2⅛” (54 mm) centers.
  • Standard pipe bracket bolts directly to the manifold providing a rigid support for the transmitter. Instrument can be removed easily for service or repair.
Products specifications
Material / GradeSS316
Valve TypeManifold
Connection TypeNPT FEMALE
Working Pressure6,000 PSI (414 barg)
Connection Size12.7 (1/2")
Connection Type 2FLANGED DIRECT MOUNT
Connection Size 212.7 (1/2")

Attachments

Features

  • Direct mounting compact design requires minimum space for operation and installation with fewer potential leak points.
  • Cost savings when manifolding the valves by eliminating several parts used in conventional methods of ‘piping up’.
  • Free-swivelling ball end stem ensures perfect alignment, providing repetitive bubble-tight shutoff and long life.
  • PTFE or graphite packing below stem threads prevents lubricant washout and thread corrosion.
  • Back seat stem prevents blowout or accidental removal while in operation.
  • Threaded ¼” NPT vent ports allow vent to be piped away safely. Supplied plugged as standard.
  • Couples directly via standard instrument side flanged connections on 2⅛” (54 mm) centers.
  • Standard pipe bracket bolts directly to the manifold providing a rigid support for the transmitter. Instrument can be removed easily for service or repair.
