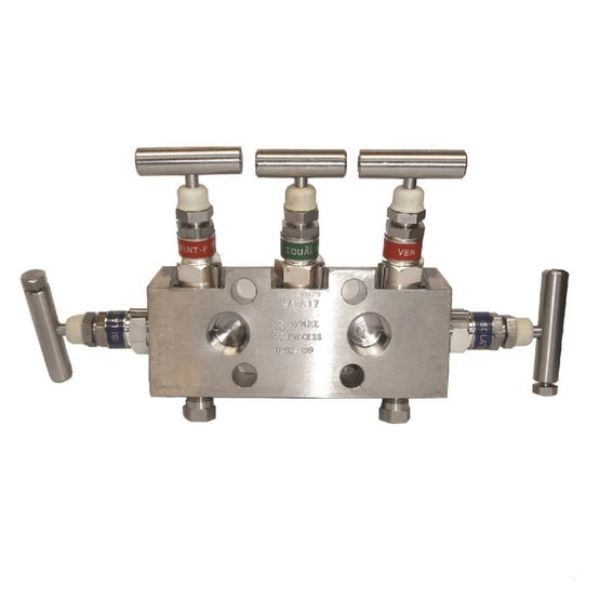

A26TVIS-4-FR-SSC-YOK-T2 AGCO 5V 15NPT X FLNG 4500PSI DIRECT SP MANIFOLD 316 T2

Item Code: A26TVIS-4-FR-LD

The A26 is a five-valve manifold that enables instrument operation, isolation, zeroing, calibration and venting to close the system in a single unit. It is suitable for liquid or vapor service

Product Files

AGCO

A26 Data Sheet

Overview
Specifications

Direct mounting compact design requires minimum space for operation and installation with fewer potential leak points.
Cost savings when manifolding the valves by eliminating several parts used in conventional methods of ‘piping up’.
Free-swivelling ball end stem ensures perfect alignment, providing repetitive bubble-tight shutoff and long life.
PTFE or graphite packing below stem threads prevents lubricant washout and thread corrosion.
Back seat stem prevents blowout or accidental removal while in operation.
Threaded ¼” NPT vent ports allow vent to be piped away safely. Supplied plugged as standard.
Couples directly via standard instrument side flanged connections on 2⅛” (54 mm) centers.
Standard pipe bracket bolts directly to the manifold providing a rigid support for the transmitter. Instrument can be removed easily for service or repair.

Products specifications

Material / Grade	SS316
Valve Type	Manifold
Connection Type	NPT FEMALE
Connection Size	12.7 (1/2")
Working Pressure	4,500 PSI (310 barg)

Attachments

Direct mounting compact design requires minimum space for operation and installation with fewer potential leak points.
Cost savings when manifolding the valves by eliminating several parts used in conventional methods of ‘piping up’.
Free-swivelling ball end stem ensures perfect alignment, providing repetitive bubble-tight shutoff and long life.
PTFE or graphite packing below stem threads prevents lubricant washout and thread corrosion.
Back seat stem prevents blowout or accidental removal while in operation.
Threaded ¼” NPT vent ports allow vent to be piped away safely. Supplied plugged as standard.
Couples directly via standard instrument side flanged connections on 2⅛” (54 mm) centers.
Standard pipe bracket bolts directly to the manifold providing a rigid support for the transmitter. Instrument can be removed easily for service or repair.

Products specifications

Material / Grade	SS316
Valve Type	Manifold
Connection Type	NPT FEMALE
Connection Size	12.7 (1/2")
Working Pressure	4,500 PSI (310 barg)
