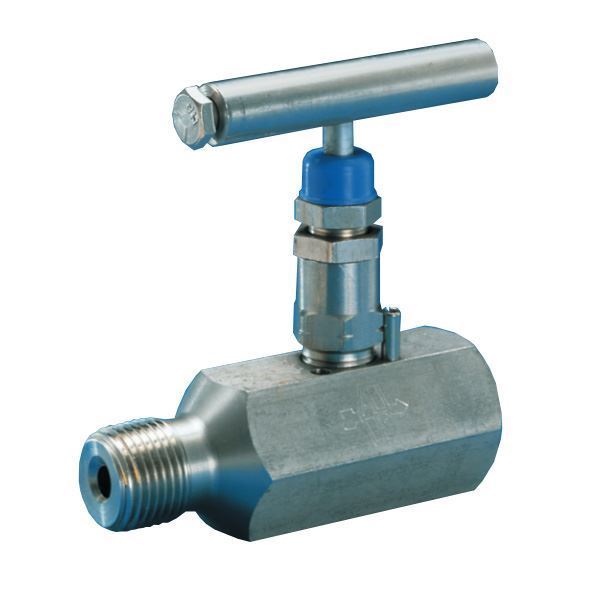

15NPT M/F 10,000PSI HAND VALVE TEFLON PACK HARD SEAT ALL 316 AGCO

Item Code: H71VIS-44Q-SS
Delivery date: 1-2 days
The H71 is designed to meet increasing pressures in oil and gas production, providing bubble-tight shutoff in severe operating conditions.

• Ball end stem eliminates seat galling, provides bubble-tight shutoff and long life. Hardened, non-rotating ball ensures perfectly aligned closure.
• Packing below threads prevents lubricant washout, thread corrosion, process contamination and eliminates galling.
• Easily adjustable PTFE packing decreases replacement downtime and increases valve life.
• Dust cover protects stem from lubricant contamination.
• Safety back seating prevents stem blowout or accidental removal and provides a metal-to-metal secondary stem seal while in the fully open position.
• ENC plated 316 SS stem prevents galling or freezing of stem threads. CS valves use a 303 SS stem for 'hard-to-soft' contact to prevent galling.
• Rolled stem and bonnet threads provide additional strength.
• Mirror stem finish in the packing area provides smooth operation and extends packing life.
• Metal-to-metal body-to-bonnet seal in constant compression prevents bonnet thread corrosion, eliminates possible tensile breakage and gives a reliable seal point.
• Metal seat can be resurfaced for longer valve life.
• Panel mount option available

Products specifications
Valve TypeHand & Needle
MaterialSS316
Connection Size12.7 (1/2")
Connection TypeNPT MALE
Working Pressure10,000 PSI (689 barg)

Attachments

• Ball end stem eliminates seat galling, provides bubble-tight shutoff and long life. Hardened, non-rotating ball ensures perfectly aligned closure.
• Packing below threads prevents lubricant washout, thread corrosion, process contamination and eliminates galling.
• Easily adjustable PTFE packing decreases replacement downtime and increases valve life.
• Dust cover protects stem from lubricant contamination.
• Safety back seating prevents stem blowout or accidental removal and provides a metal-to-metal secondary stem seal while in the fully open position.
• ENC plated 316 SS stem prevents galling or freezing of stem threads. CS valves use a 303 SS stem for 'hard-to-soft' contact to prevent galling.
• Rolled stem and bonnet threads provide additional strength.
• Mirror stem finish in the packing area provides smooth operation and extends packing life.
• Metal-to-metal body-to-bonnet seal in constant compression prevents bonnet thread corrosion, eliminates possible tensile breakage and gives a reliable seal point.
• Metal seat can be resurfaced for longer valve life.
• Panel mount option available

Products specifications
Valve TypeHand & Needle
MaterialSS316
Connection Size12.7 (1/2")
Connection TypeNPT MALE
Working Pressure10,000 PSI (689 barg)
