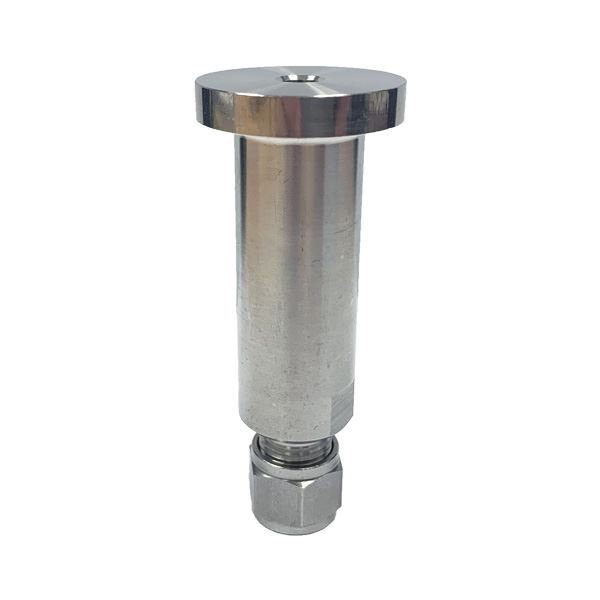

9.5MM OD X 15NB CL2500 CONNECTOR LAPPED FLANGE SMOOTH FINISH GYROLOK 316

Item Code: 6CLFA-316
Delivery date: 1-2 days
Fractional
The Lapped Flange Connector is used to allow safe and easy connections between process lines and instruments. The basic, one-piece unit consists of a HOKE Gyrolok tube connection end and a 1/2” lap joint pipe flange. The flange end is dimensioned to meet “ANSI 2500” flange specifications. Available in “Smooth” or “Serrated/Concentric” seal faces, and in 316 Stainless Steel or Monel.


Technical Information
Products specifications
Material / GradeSS316
End Connection Size 19.5 (3/8")
End Connection Type 1TUBE
Connection Size 215NB
Connection Type 2FLANGED ANSI CL2500

Attachments

Products specifications
Material / GradeSS316
End Connection Size 19.5 (3/8")
End Connection Type 1TUBE
Connection Size 215NB
Connection Type 2FLANGED ANSI CL2500
