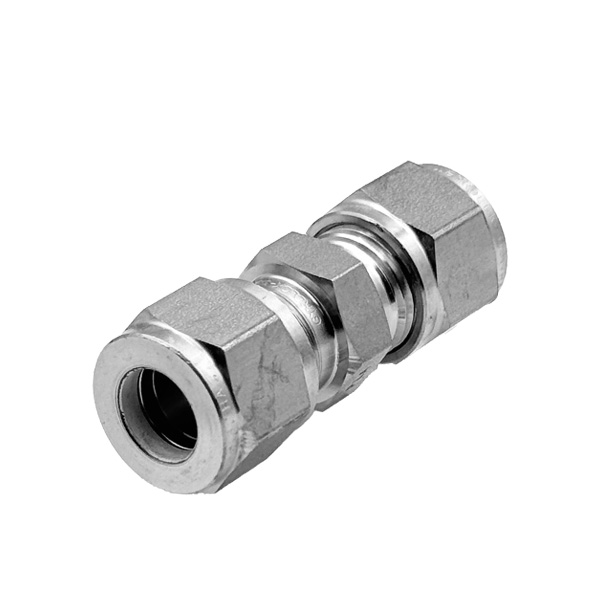

9.5MM OD UNION GYROLOK 316

Brand: Gyrolok - Crane
Item Code: 6U-316
Delivery date: 1-2 days
Connects 3/8" OD fractional tubes
 Technical Information
Products specifications
End Connection Size 1 9.5 (3/8")
End Connection Size 2 9.5 (3/8")
End Connection Type 1 TUBE
End Connection Type 2 TUBE
Material / Grade SS316
Fitting Type UNION

Attachments
