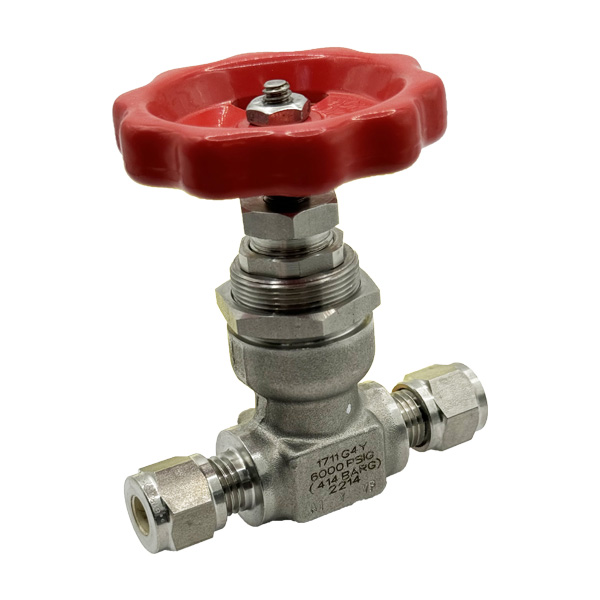

6.3OD TUBE 6000PSI CYLINDER VALVE FORGED BODY 316
1700 Series - Forged Body, Integral Bonnet Needle Valve These affordable valves are suited for a wide variety of process control applications. Non-rotating stainless steel or replaceable PCTFE stem tips reduce galling. Dyna-Pak packing below the stem threads prevents fugitive emissions.
Technical Information Typical Applications
- Cylinder valves
- Panel board instrumentation
- Pressure gauge valves
- Sampling systems
- Research laboratories
- Oxygen service
- Corrosive or high pressure service
Safety
- Lock nut secures packing nut to prohibit accidental removal
Long cycle life
- Packing below stem threads prevents fluid from contacting the stem threads
- Non-rotating hardened 17-4PH stainless steel, Monel or replaceable PCTFE stem tip is combined with a hardened 450 stainless steel - or Monel thread gland to reduce galling
Helps eliminate fugitive emissions
- Dyna-Pak packing provides a leak-tight seal with low operating torque
Reliability
- All valves are tested for bubble-tight leakage at both seat and packing
Installation variety
- Broad selection of male NPT, female NPT, and HOKE Gyrolok fractional or metric tube fitting connections
Panel mounting
- Panel mounting is standard on all models
- Special High Tolerance NPT Thread
Products specifications
| Material / Grade | SS316 |
| Valve Type | Cylinder |
| Working Pressure | 6,000 PSI (414 barg) |
| End Connection Type 1 | TUBE |
| End Connection Size 1 | 6.3 (1/4") |
| End Connection Type 2 | TUBE |
| End Connection Size 2 | 6.3 (1/4") |
