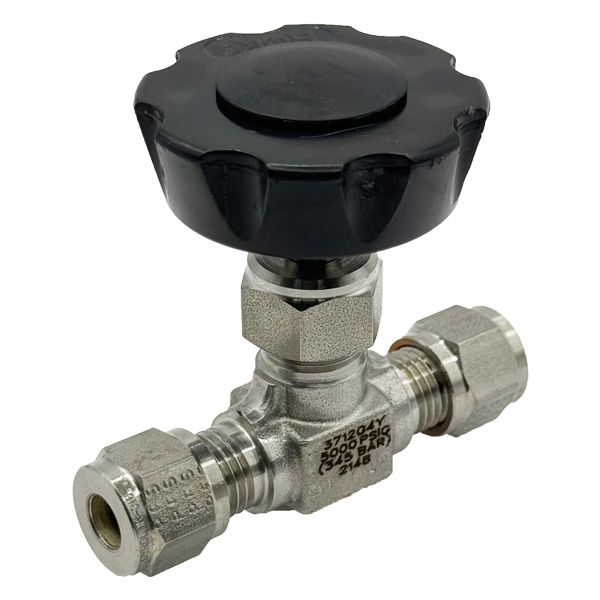

6.3OD TUBE 5000PSI NEEDLE VALVE FORGED BODY 316 REGULATING STEM

Item Code: 3712G4Y
Delivery date: 1-2 days
3700 Series - Forged Body, Integral Bonnet Needle Valve
Offered in four different body materials, this group of valves can handle a wide range of general purpose liquid and gas applications. Six types of stem tips are available, including two styles of vee-points. All models can be ordered for panel mounting.
Technical Information

Typical Applications

  • Instrument air lines
  • Sampling
  • Gas chromatography
  • Test stands
  • Cylinder valves

Safety

  • Integral bonnet provides diff erential thread pitch between stem threads and packing nut thread preventing accidental stem removal

Stem tip options

  • A choice of PCTFE, metal, vee-point, blunt veepoint, or regulating stem tips

Helps eliminate fugitive emissions

  • Dyna-Pak packing provides a leak-tight seal with low operating torque in deep vacuum or high pressure applications

Dependability

  • All valves are tested for bubble-tight leakage at both seat and packing

Installation variety

  • Broad selection of male NPT, female NPT, and HOKE Gyrolok fractional or metric tube fitting connections

Handle options

  • Color-coded handles are available for identifying system fluids

Panel mounting available

  • All models can be ordered for panel mounting

Easy maintenance

  • All models can be panel mounted without packing disruption. Packing can be adjusted without removal from panel
  • Special High Tolerance NPT Thread
Products specifications
Valve TypeHand & Needle
MaterialSS316
Connection Size6.3 (1/4")
Connection TypeGYROLOK
Connection Size 26.3 (1/4")
Connection Type 2GYROLOK
Working Pressure5,000 PSI (345 barg)

Attachments

Typical Applications

  • Instrument air lines
  • Sampling
  • Gas chromatography
  • Test stands
  • Cylinder valves

Safety

  • Integral bonnet provides diff erential thread pitch between stem threads and packing nut thread preventing accidental stem removal

Stem tip options

  • A choice of PCTFE, metal, vee-point, blunt veepoint, or regulating stem tips

Helps eliminate fugitive emissions

  • Dyna-Pak packing provides a leak-tight seal with low operating torque in deep vacuum or high pressure applications

Dependability

  • All valves are tested for bubble-tight leakage at both seat and packing

Installation variety

  • Broad selection of male NPT, female NPT, and HOKE Gyrolok fractional or metric tube fitting connections

Handle options

  • Color-coded handles are available for identifying system fluids

Panel mounting available

  • All models can be ordered for panel mounting

Easy maintenance

  • All models can be panel mounted without packing disruption. Packing can be adjusted without removal from panel
  • Special High Tolerance NPT Thread
Products specifications
Valve TypeHand & Needle
MaterialSS316
Connection Size6.3 (1/4")
Connection TypeGYROLOK
Connection Size 26.3 (1/4")
Connection Type 2GYROLOK
Working Pressure5,000 PSI (345 barg)
