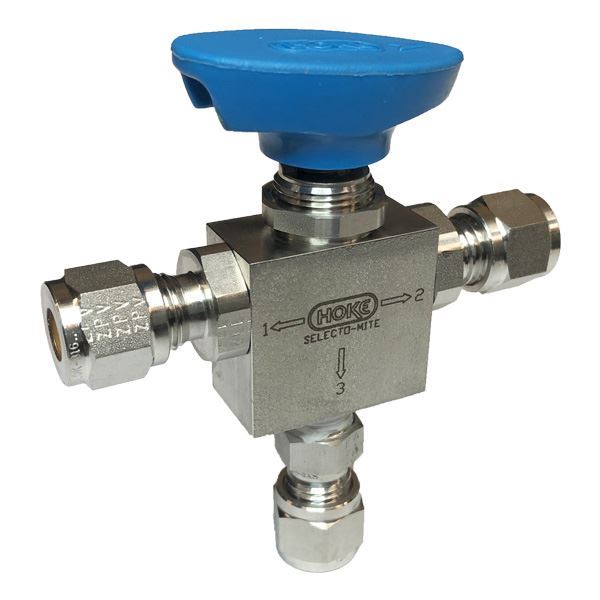

6.3OD TUBE 2000PSI BALL VALVE 3-WAY 316 SELECTOMITE

Brands: HOKE , Gyrolok - Crane
Item Code: 7177G4Y
Delivery date: 1-2 days
3-way Ball Valves
Selectomite 3-way ball valves use 180° operation for diverting flow from one line to another. The handle points to the side port in use; when perpendicular to the side ports, it indicates the shutoff position. Technical Information

Typical Applications

  • Instrument air lines
  • Sampling systems
  • 2-way gauge readout of line pressure
  • Manual cylinder actuation

Features & Benefits

  • Handle points to port in use or to closed position, providing a visual cue and improved safety.
  • Dyna-Pak packing provides a leak-tight seal with low operating torque in vacuum or high pressure applications, helping to prevent fugitive emissions.
  • Dual encapsulated TFE seats and microfi nished ball ensure a leak tight seal. This combination provides greater valve reliability.
  • TFE seats and washers provide excellent corrosion resistance, providing the correct material for the application.
  • A wide variety of GYROLOK end fittings or pipe fittings provide the correct fitting option for the application.
Products specifications
Valve Type Ball
Material SS316
Connection Size 6.3 (1/4")
Connection Type GYROLOK
Working Pressure 2,000 PSI (138 barg)
Connection Type 2 GYROLOK
Connection Size 2 6.3 (1/4")

Attachments

Typical Applications

  • Instrument air lines
  • Sampling systems
  • 2-way gauge readout of line pressure
  • Manual cylinder actuation

Features & Benefits

  • Handle points to port in use or to closed position, providing a visual cue and improved safety.
  • Dyna-Pak packing provides a leak-tight seal with low operating torque in vacuum or high pressure applications, helping to prevent fugitive emissions.
  • Dual encapsulated TFE seats and microfi nished ball ensure a leak tight seal. This combination provides greater valve reliability.
  • TFE seats and washers provide excellent corrosion resistance, providing the correct material for the application.
  • A wide variety of GYROLOK end fittings or pipe fittings provide the correct fitting option for the application.
Products specifications
Valve Type Ball
Material SS316
Connection Size 6.3 (1/4")
Connection Type GYROLOK
Working Pressure 2,000 PSI (138 barg)
Connection Type 2 GYROLOK
Connection Size 2 6.3 (1/4")
