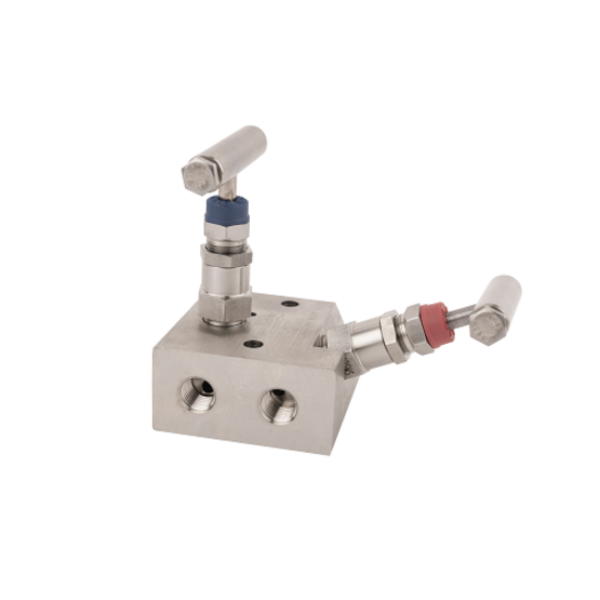

15NPT FXF 6000PSI 2-VALVE REMOTE SP MANIFOLD TEFLON PACK HARD SEAT ALL 316 AGCO T2

Item Code: M25BVIS-4-SS-T2
Versatile two-valve static pressure manifolds with a variety of inlet and outlet connections that enable isolation, calibration and venting within a single unit. General Application - Specifically designed for use with pressure transmitters, gauges and switches in liquid and vapor service, all models are ideal for instrument isolation and provide the ability to vent or calibrate to a separate threaded port.

Features

  • Remote mounting compact design requires minimum space for operation and installation.
  • Reduced installation costs by manifolding the valves, eliminating several components essential for ‘piping-up’.
  • Free-swivelling ball end stem ensures perfect alignment, providing repetitive bubble-tight shutoff and long life.
  • PTFE or graphite packing below stem threads prevents lubricant washout and thread corrosion.
  • Back seat stem prevents blowout or accidental removal.
  • Threaded vent ports allow vent to be piped away safely. Supplied plugged as standard.
  • All manifolds supplied with mounting holes as standard to enable pipe bracket mounting.
Products specifications
Material / Grade SS316
Valve Type Manifold
Working Pressure 6,000 PSI (414 barg)
End Connection Type 1 NPT FEMALE
End Connection Size 1 12.7 (1/2")
End Connection Type 2 NPT FEMALE
End Connection Size 2 12.7 (1/2")
