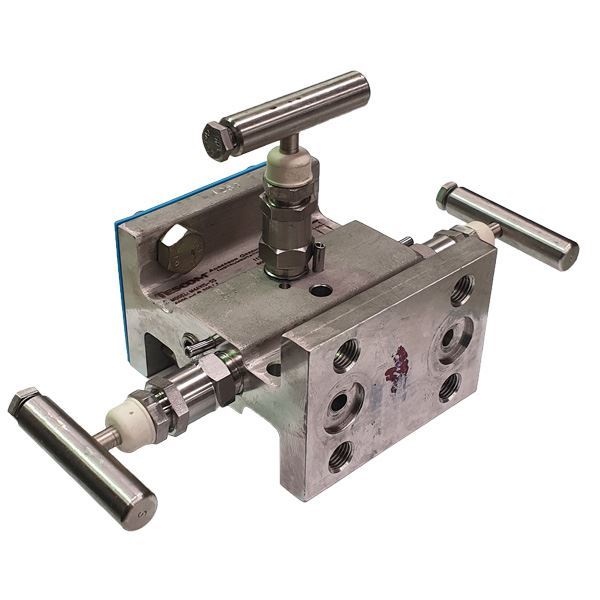

15NB FLANGE 6000PSI 3-VALVE DIRECT DP MANIFOLD TEFLON PACK HARD SEAT ALL 316 AGCO

Item Code: M4AVIS-SS
Delivery date: 1-2 days
15NB FLANGE 6000PSI 3-VALVE DIRECT DP MANIFOLD TEFLON PACK HARD SEAT ALL 316 AGCO
Product Files

Differential pressure manifolds with two main block valves and an equalizing valve for direct or remote mounting at pressures to 6000 psig (414 barg)

  • Cost savings of 20-30% when unitizing the manifolding by eliminating several parts used in conventional methods of ‘piping up’.
  • Roddable soft seats simplify maintenance and ensure accuracy.
  • Back seat stem design eliminates stem blowout or accidental removal while in operation.
  • Fewer leak points reduce the chances of leakage.
  • Soft seat design enables field replacement without valve removal.
  • Rolled stem threads provide a stronger, more durable thread area, increasing valve life.
  • Mirror stem finish in the packing area ensures smooth operation and extends packing life.
  • Constant compression metal-to-metal bonnet-to-body seal below bonnet threads prevents corrosion, eliminates tensile breakage and creates a reliable seal point.
  • Easily adjustable stem packing decreases downtime and provides long service life.
  • PTFE-packed design’s bonnet cap protects against atmospheric contamination; reduces thread galling by containment of stem lubricant and increases valve life.
  • AGCO Mount option provides installation and service benefits.
Products specifications
Valve TypeManifold
MaterialSS316
Connection Size12.7 (1/2")
Connection TypeFLANGED DIRECT MOUNT
