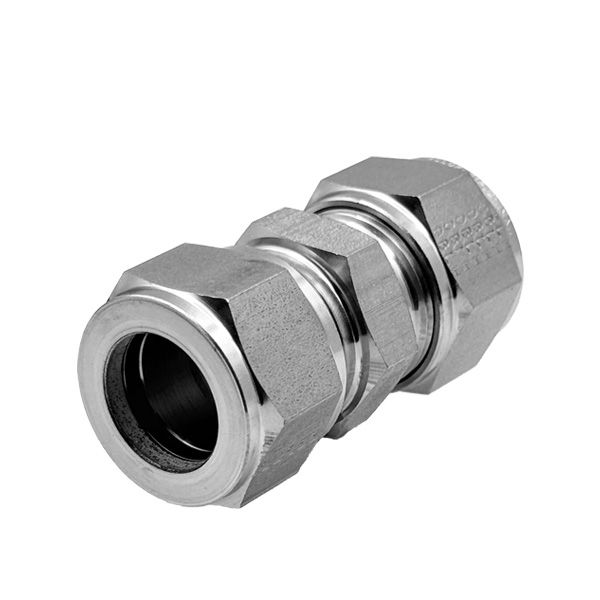

15.8MM OD UNION GYROLOK 316

Brand: Gyrolok - Crane
Item Code: 10U-316
Delivery date: 1-2 days
Connects 5/8" OD fractional tubes
 Technical Information
Products specifications
End Connection Size 1 15.8 (5/8")
End Connection Size 2 15.8 (5/8")
End Connection Type 1 TUBE
End Connection Type 2 TUBE
Material / Grade SS316
Fitting Type UNION

Attachments
