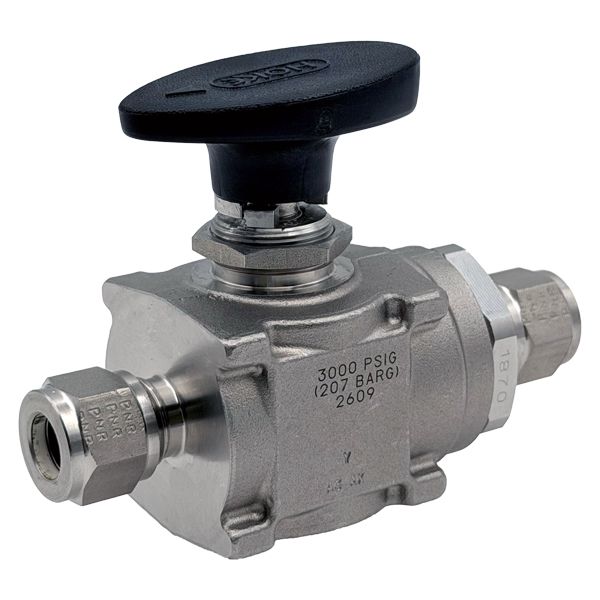

12.7OD TUBE 3000PSI BALL VALVE 3.4Cv PTFE PACK ABV HOKE FE 316

Brand: HOKE
Item Code: ABV26G8Y
12.7OD (1/2") TUBE 3000PSI BALL VALVE 3.4Cv PTFE PACK ABV HOKE FE 316 For demanding process applications, that handle corrosive and hazardous media, the Hoke ABV series offers extended service life, reduced fugitive emissions, and superior sealing, in a compact body.

DESIGN FEATURES
• Integral / GYROLOK® tube connections
• Female & Male NPT connections
• Sizes 1⁄8˝, 1⁄4˝, 3⁄8˝, 1⁄2˝, 6mm, 8mm, 10mm, 12mm
• Working pressures up to 3,000 psi
• Maximum operating temperature 150ºC
• Minimum operating temperature -54ºC
• Dyna-Pak stem packing
• ISO 15848-1 Fugitive Emissions certified

TYPICAL APPLICATIONS
• Analyzer sample conditioning systems
• Controls & instrumentation isolation and venting
• Measurement and regulating equipment
• Hydraulic applications

Products specifications
Material / GradeSS316
Valve TypeBall
Working Pressure3,000 PSI (207 barg)
Connection TypeGYROLOK
Connection Size12.7 (1/2")
Connection Type 2GYROLOK
Connection Size 212.7 (1/2")

Attachments

DESIGN FEATURES
• Integral / GYROLOK® tube connections
• Female & Male NPT connections
• Sizes 1⁄8˝, 1⁄4˝, 3⁄8˝, 1⁄2˝, 6mm, 8mm, 10mm, 12mm
• Working pressures up to 3,000 psi
• Maximum operating temperature 150ºC
• Minimum operating temperature -54ºC
• Dyna-Pak stem packing
• ISO 15848-1 Fugitive Emissions certified

TYPICAL APPLICATIONS
• Analyzer sample conditioning systems
• Controls & instrumentation isolation and venting
• Measurement and regulating equipment
• Hydraulic applications

Products specifications
Material / GradeSS316
Valve TypeBall
Working Pressure3,000 PSI (207 barg)
Connection TypeGYROLOK
Connection Size12.7 (1/2")
Connection Type 2GYROLOK
Connection Size 212.7 (1/2")
