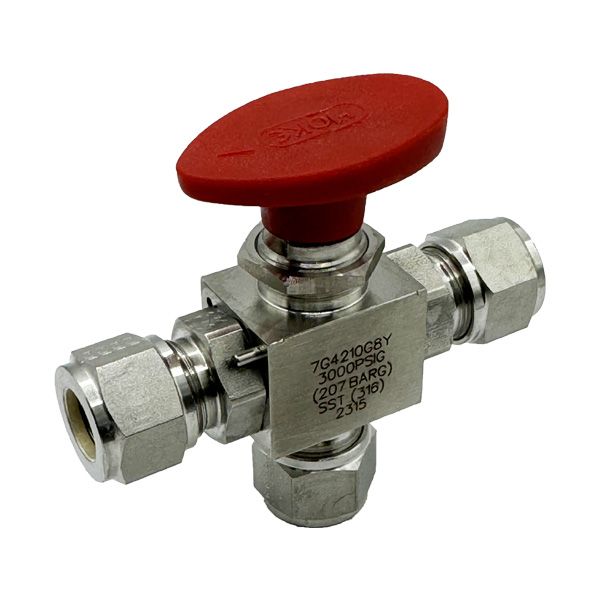

12.7OD TUBE 3000PSI BALL VALVE 3-WAY 316 FLOMITE HOKE

Item Code: 7G4210G8Y
3-way Ball Valves Multi-directional Flow - 7G Series
Technical Information

Features

  • Floating ball valve provides shut off or controls flow directions (3-way)
  • Panel mounting is standard for all end fitting sizes except 1/2" and 18mm end connections
  • Reliable housing construction incorporates metal seals
  • Dyna-PakĀ® packing provides a leak-tight seal with low operating torque in vacuum or high pressure applications, helping to prevent fugitive emissions
  • Handle points to port in use or to closed position, providing a visual cue and improved safety
  • Multi-directional flow throughout entire operating pressure range
  • Fractional Gyrolok and female NPT end fittings up to 1/2"; metric Gyrolok up to 18mm
  • Pressure assisted sealing, no sealing adjustment required
  • Virgin TFE seat and seal design (Contact us for other seat materials)
  • Special High Tolerance NPT Thread

Typical Applications

  • Hydraulic test stands
  • High pressure test stands
  • Viscous media handling
  • Gas and liquid applications
  • Pilot plants in refineries and chemical plants
  • Measurement and regulating equipment
Products specifications
Material / GradeSS316
Valve TypeBall
Working Pressure3,000 PSI (207 barg)
End Connection Type 1GYROLOK
End Connection Size 112.7 (1/2")
End Connection Type 2GYROLOK
End Connection Size 212.7 (1/2")
End Connection Type 3GYROLOK
End Connection Size 312.7 (1/2")

Attachments

Features

  • Floating ball valve provides shut off or controls flow directions (3-way)
  • Panel mounting is standard for all end fitting sizes except 1/2" and 18mm end connections
  • Reliable housing construction incorporates metal seals
  • Dyna-PakĀ® packing provides a leak-tight seal with low operating torque in vacuum or high pressure applications, helping to prevent fugitive emissions
  • Handle points to port in use or to closed position, providing a visual cue and improved safety
  • Multi-directional flow throughout entire operating pressure range
  • Fractional Gyrolok and female NPT end fittings up to 1/2"; metric Gyrolok up to 18mm
  • Pressure assisted sealing, no sealing adjustment required
  • Virgin TFE seat and seal design (Contact us for other seat materials)
  • Special High Tolerance NPT Thread

Typical Applications

  • Hydraulic test stands
  • High pressure test stands
  • Viscous media handling
  • Gas and liquid applications
  • Pilot plants in refineries and chemical plants
  • Measurement and regulating equipment
Products specifications
Material / GradeSS316
Valve TypeBall
Working Pressure3,000 PSI (207 barg)
End Connection Type 1GYROLOK
End Connection Size 112.7 (1/2")
End Connection Type 2GYROLOK
End Connection Size 212.7 (1/2")
End Connection Type 3GYROLOK
End Connection Size 312.7 (1/2")
