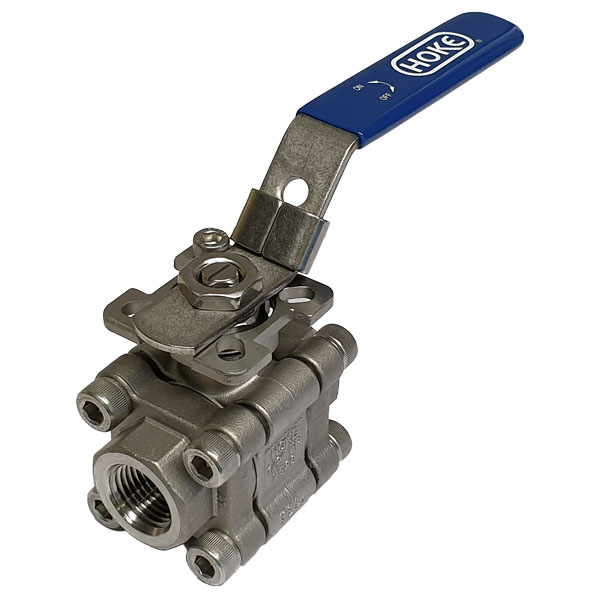

10NPT FEMALE 3000WOG 3-PIECE BALL VALVE HOKE CF8M MOUNT PAD

Brand: HOKE
Item Code: 7520F6Y
3-Piece Full Port Ball Valves, Threaded 10NPT (3/8") Ends, 3000PSI (207 Bar) W.O.G, Enclosed Bolt Type, ISO 5211 Direct Actuator Mounting Pad
  • Strengthened construction fully complied with ASME/ANSI B16.34 secures 3000 psi/2000 psi working pressure rating.
  • Fully encapsulated bolts are protected from the environment for extended service life.
  • Live-loaded packing gland design for self-adjustment of packing compression.
  • Equalized cavity pressure hole drilled in the stem slot of ball.
  • Bottom-loaded blow-out proof stem.
  • Pressure equalizing seats
  • Basic design complies with ANSI B16.34.
  • Tested according to API 598
  • High tolerance NPT Thread Specification
  • Part number and brand embossed on body
  • Optional oval handle available (uninstalled)
Products specifications
Material / GradeSS316
Valve TypeBall
Working Pressure3000WOG
Connection TypeNPT FEMALE
Connection Size9.5 (3/8")
Valve Body3-PIECE
Valve BoreFULL PORT

Attachments

  • Strengthened construction fully complied with ASME/ANSI B16.34 secures 3000 psi/2000 psi working pressure rating.
  • Fully encapsulated bolts are protected from the environment for extended service life.
  • Live-loaded packing gland design for self-adjustment of packing compression.
  • Equalized cavity pressure hole drilled in the stem slot of ball.
  • Bottom-loaded blow-out proof stem.
  • Pressure equalizing seats
  • Basic design complies with ANSI B16.34.
  • Tested according to API 598
  • High tolerance NPT Thread Specification
  • Part number and brand embossed on body
  • Optional oval handle available (uninstalled)
Products specifications
Material / GradeSS316
Valve TypeBall
Working Pressure3000WOG
Connection TypeNPT FEMALE
Connection Size9.5 (3/8")
Valve Body3-PIECE
Valve BoreFULL PORT
