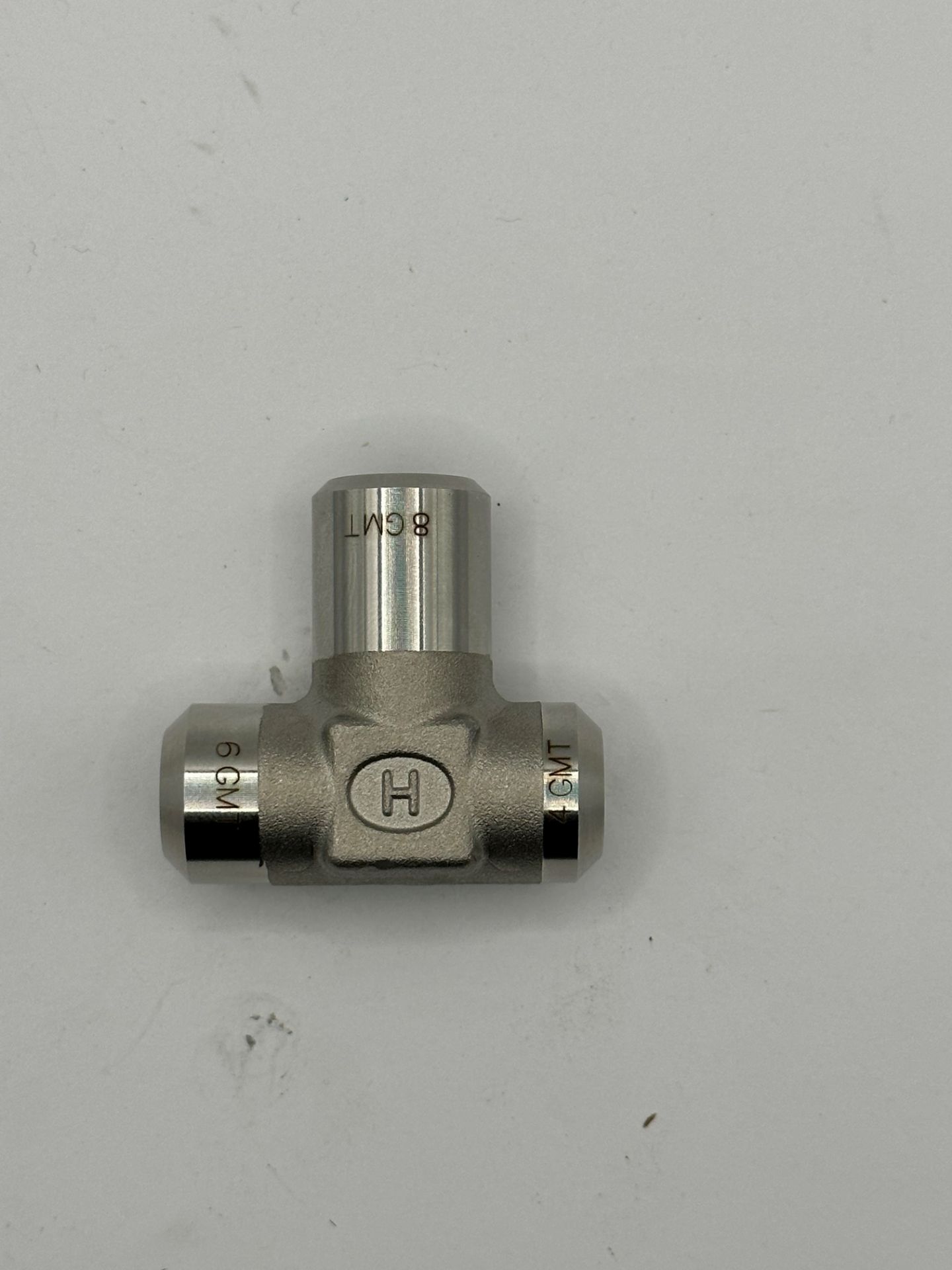

HOKE DEPTH GAUGE SUIT 6.35MM 9.5MM & 12.7MM

Brands: Gyrolok - Crane , HOKE
Item Code: 468GMT
Tube fitting users have long recognized that proper tube and tube fitting system function requires good tubing preparation followed by the use of correct installation procedures. Improper ferrule set in any flareless tube and fitting system may be the result of burrs created during the tube cutting process, improper tube insertion into the fitting, or inadequate tightening of the fitting nut. In order to maximize tube and fitting system performance and safety, HOKE offers several tool options

Instructions

  1. Squarely cut tubing, preferably with a tube cutter, and then deburr both inside and outside diameters as necessary.
  2. Firmly insert tubing into the tool as far as possible.
  3. Mark the tubing, as shown, with a pencil or FINE POINT marker utilizing low chloride ink.
  4. Firmly insert the marked tubing into the Gyrolok® fitting to which it will be assembled. Finger-tighten the nut. The mark should NOT be visible at this point. If not visible, continue to step 5. If any part of the mark is visible above the Gyrolok® nut after only finger-tightening, the tubing is either not properly seated within the fitting or a ferrule is missing. Disassemble and determine cause.
  5. If the mark is not visible after finger-tightening, continue by following appropriate Gyrolok® assembly instructions for tubing O.D. and wall thickness.
Products specifications
Material / GradeSS316
End Connection Type 1TUBE
End Connection Size 16.3 (1/4")
End Connection Type 2TUBE
End Connection Size 29.5 (3/8")
End Connection Type 3TUBE
End Connection Size 312.7 (1/2")

Attachments

Instructions

  1. Squarely cut tubing, preferably with a tube cutter, and then deburr both inside and outside diameters as necessary.
  2. Firmly insert tubing into the tool as far as possible.
  3. Mark the tubing, as shown, with a pencil or FINE POINT marker utilizing low chloride ink.
  4. Firmly insert the marked tubing into the Gyrolok® fitting to which it will be assembled. Finger-tighten the nut. The mark should NOT be visible at this point. If not visible, continue to step 5. If any part of the mark is visible above the Gyrolok® nut after only finger-tightening, the tubing is either not properly seated within the fitting or a ferrule is missing. Disassemble and determine cause.
  5. If the mark is not visible after finger-tightening, continue by following appropriate Gyrolok® assembly instructions for tubing O.D. and wall thickness.
Products specifications
Material / GradeSS316
End Connection Type 1TUBE
End Connection Size 16.3 (1/4")
End Connection Type 2TUBE
End Connection Size 29.5 (3/8")
End Connection Type 3TUBE
End Connection Size 312.7 (1/2")
