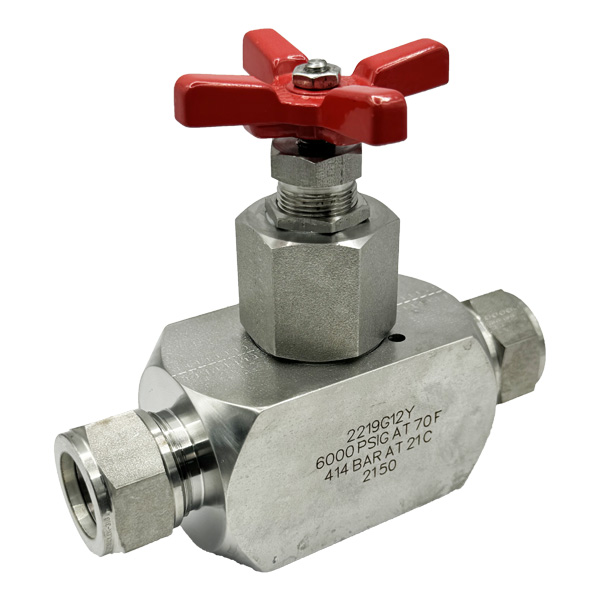

19.1OD TUBE 6000PSI NEEDLE VALVE SEVERE SERVICE 316

Brands: HOKE , Gyrolok - Crane
Item Code: 2219G12Y
2219 Series - Severe Service Needle Valve
The new Hoke 2219 Needle Valve is an excellent choice for many steam- and severe service applications. Grafoil packing below the stem threads provides exceptional service at temperatures up to +1000° F (+538° C). The nonrotating 316 stainless steel stem tip prevents galling.
Technical Information
Product Files
  • Meets ANSI 900# specifications
  • Grafoil packing below threads isolates threads from media.
  • Non-rotating 316 stainless steel stem tip prevents galling
  • High pressure / high temperature use

All standard components are 316 stainless steel

  • Standard 316 stainless steel cast handle
  • Fractional end connections available up to 1”; metric end connections up to 25 mm
  • Gyrolok, female NPT, NPS-, or tube socket weld end connections
  • Bubble-tight leak testing at both seat and packing
  • Special High Tolerance NPT Thread

Typical Applications

  • Steam service in power plants
  • Hot condensates
Products specifications
Material / GradeSS316
Valve TypeHand & Needle
Working Pressure6,000 PSI (414 barg)
End Connection Type 1GYROLOK
End Connection Size 119.1 (3/4")
End Connection Type 2GYROLOK
End Connection Size 219.1 (3/4")

Attachments

  • Meets ANSI 900# specifications
  • Grafoil packing below threads isolates threads from media.
  • Non-rotating 316 stainless steel stem tip prevents galling
  • High pressure / high temperature use

All standard components are 316 stainless steel

  • Standard 316 stainless steel cast handle
  • Fractional end connections available up to 1”; metric end connections up to 25 mm
  • Gyrolok, female NPT, NPS-, or tube socket weld end connections
  • Bubble-tight leak testing at both seat and packing
  • Special High Tolerance NPT Thread

Typical Applications

  • Steam service in power plants
  • Hot condensates
