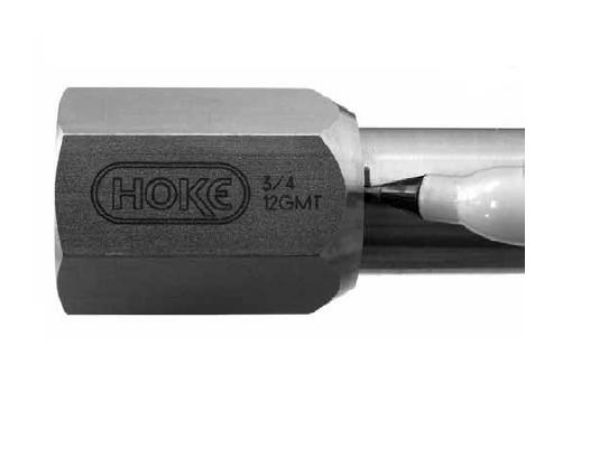

19.1MM HOKE DEPTH GAUGE

Item Code: 12GMT
The Gyrolok® Marking Tool provides the installer with an economical means of ensuring both proper tubing insertion into the fitting and adequate nut tightening.
Technical Information

Instructions

  1. Squarely cut tubing, preferably with a tube cutter, and then deburr both inside and outside diameters as necessary.
  2. Firmly insert tubing into the tool as far as possible.
  3. Mark the tubing, as shown, with a pencil or FINE POINT marker utilizing low chloride ink.
  4. Firmly insert the marked tubing into the Gyrolok® fitting to which it will be assembled. Finger-tighten the nut. The mark should NOT be visible at this point. If not visible, continue to step 5. If any part of the mark is visible above the Gyrolok® nut after only finger-tightening, the tubing is either not properly seated within the fitting or a ferrule is missing. Disassemble and determine cause.
  5. If the mark is not visible after finger-tightening, continue by following appropriate Gyrolok® assembly instructions for tubing O.D. and wall thickness.
Products specifications
Material / GradeSS316
End Connection Type 1

End Connection Size 119.1 (3/4")

Attachments

Instructions

  1. Squarely cut tubing, preferably with a tube cutter, and then deburr both inside and outside diameters as necessary.
  2. Firmly insert tubing into the tool as far as possible.
  3. Mark the tubing, as shown, with a pencil or FINE POINT marker utilizing low chloride ink.
  4. Firmly insert the marked tubing into the Gyrolok® fitting to which it will be assembled. Finger-tighten the nut. The mark should NOT be visible at this point. If not visible, continue to step 5. If any part of the mark is visible above the Gyrolok® nut after only finger-tightening, the tubing is either not properly seated within the fitting or a ferrule is missing. Disassemble and determine cause.
  5. If the mark is not visible after finger-tightening, continue by following appropriate Gyrolok® assembly instructions for tubing O.D. and wall thickness.
Products specifications
Material / GradeSS316
End Connection Type 1

End Connection Size 119.1 (3/4")
