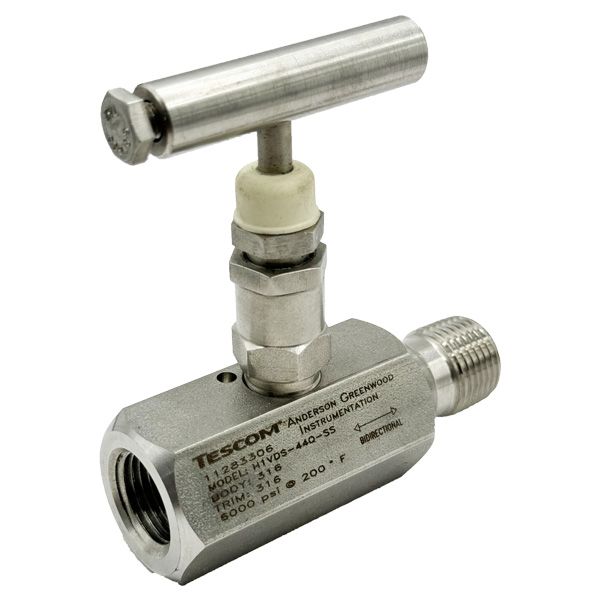

15NPT M/F 6000PSI HAND VALVE SOFT SEAT 4.8MM ORIF TEFLON PACK DELRIN ALL 316 AGCO

Item Code: H1VDS-44Q-SS
Delivery date: 1-2 days
Designed for maximum system reliability, these valves are built for reliable, bubble-tight service with a variety of end connections, seat materials and stem packing, in 316 SS or CS and are available to meet NACE requirements.

• Soft seat replaceable valve operates in dirty service with repetitive bubble-tight shutoff.
• Packing below threads prevents lubricant washout, thread corrosion, process contamination and eliminates galling.
• Easily adjustable PTFE packing decreases replacement downtime and increases valve life.
• Dust Cap protects stem from lubricant contamination.
• Safety back seating prevents stem blowout or accidental removal and provides a metal-to-metal secondary stem seal while in the fully open postion.
• ENC plated 316 SS stem prevents galling of stem threads.
• Rolled stem and bonnet threads provideadditional strength.
• Mirror stem finish in the packing area provides smooth operation and extends packing life.
• Straight-through flow path means high flow capacity, bi-directional flow and rodding capabilities.

Products specifications
Valve TypeHand & Needle
MaterialSS316
Connection Size12.7 (1/2")
Connection TypeNPT MALE
Working Pressure6,000 PSI (414 barg)
Connection Type 2NPT FEMALE
Connection Size 212.7 (1/2")

Attachments

• Soft seat replaceable valve operates in dirty service with repetitive bubble-tight shutoff.
• Packing below threads prevents lubricant washout, thread corrosion, process contamination and eliminates galling.
• Easily adjustable PTFE packing decreases replacement downtime and increases valve life.
• Dust Cap protects stem from lubricant contamination.
• Safety back seating prevents stem blowout or accidental removal and provides a metal-to-metal secondary stem seal while in the fully open postion.
• ENC plated 316 SS stem prevents galling of stem threads.
• Rolled stem and bonnet threads provideadditional strength.
• Mirror stem finish in the packing area provides smooth operation and extends packing life.
• Straight-through flow path means high flow capacity, bi-directional flow and rodding capabilities.

Products specifications
Valve TypeHand & Needle
MaterialSS316
Connection Size12.7 (1/2")
Connection TypeNPT MALE
Working Pressure6,000 PSI (414 barg)
Connection Type 2NPT FEMALE
Connection Size 212.7 (1/2")
